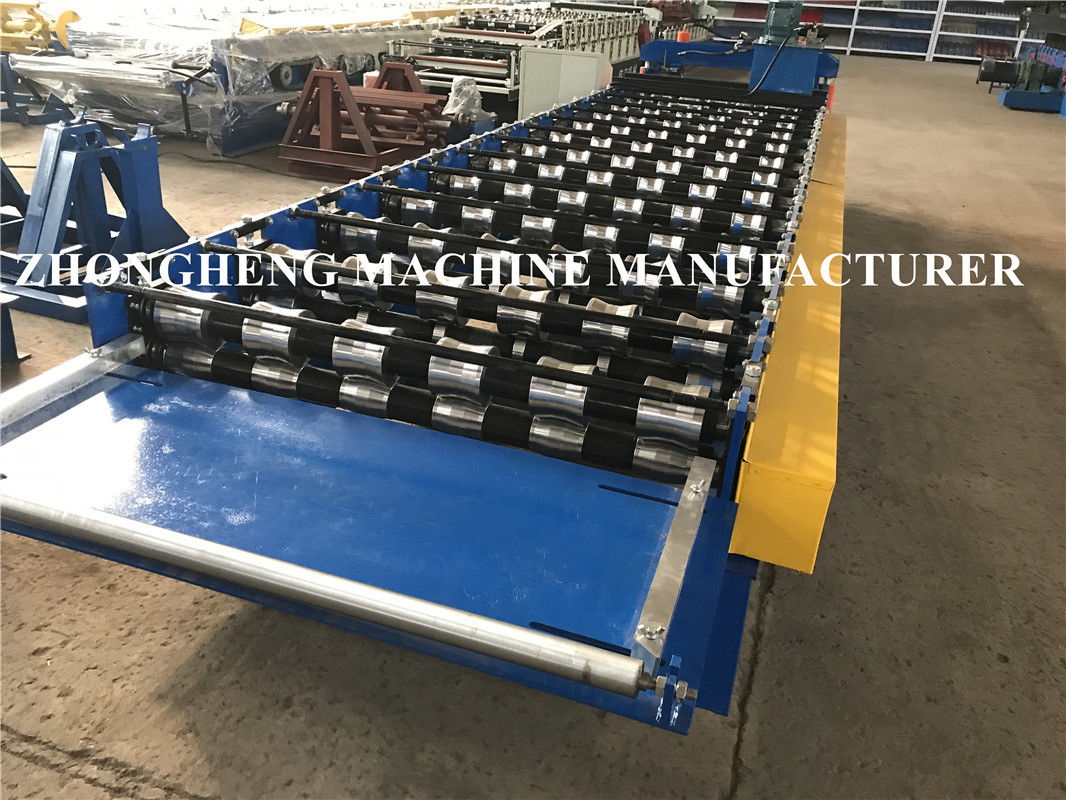

Servo Motor Control Roof Sheet Metal Roll Forming Machines With PLC And Inverter Control

Servo Motor Control Roof Sheet Metal Roll Forming Machines With PLC And Inverter Control

    • Servo Motor Control Roof Sheet Metal Roll Forming Machines With PLC And Inverter Control
    • Servo Motor Control Roof Sheet Metal Roll Forming Machines With PLC And Inverter Control
    • Servo Motor Control Roof Sheet Metal Roll Forming Machines With PLC And Inverter Control
    • Servo Motor Control Roof Sheet Metal Roll Forming Machines With PLC And Inverter Control
  • Servo Motor Control Roof Sheet Metal Roll Forming Machines With PLC And Inverter Control

    Product Details:

    Place of Origin: China
    Brand Name: ZHONGHENG
    Certification: ce/sgs
    Model Number: ZH27-200-1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 13000-15000
    Packaging Details: plastic film cover
    Delivery Time: 25 working days
    Supply Ability: 30 sets /month
    Contact Now
    Detailed Product Description
    Material: PPGI Diameter Of The Shaft: 85mm Solid
    Motor: 5.5kw Pump: 5.5kw
    Speed: 10-15m/min Chains: Double 0.6 Inch
    Touch Screen: Panosonic

                            servo motor control roof sheet roll forming machine with PLC and inverter control





    PRODUCT PARAMETERS

    Servo Motor Control Roof Sheet Metal Roll Forming Machines With PLC And Inverter ControlServo Motor Control Roof Sheet Metal Roll Forming Machines With PLC And Inverter Control


    No. Metal Roof Panel Roll Forming Machine
    1 Suitable material PPGI/Aluminium sheet/galvanized sheet/galvalume sheet
      thickness 0.3-0.8mm
    3 Coil width 1250mm
    4 Cutting method Hydraulic guide pillar
    5 Material of main frame 350H steel
    6 Diameter of Soild shaft 75mm, high grade 45# steel
    7 Roller material

    Quenched and tempered treatment,

    hard chrome coated 0.05-0.07mm

    8 Thickness of middle plate 16mm
    9 Forming station 14 stands
    10 Drive type By chain(1.3 inches) link bearing model 6210
    11 Power of main motor 5.5kw with Cycloidal reducer
    12 Power of pump station 4kw
    13 Forming speed About 8-12m/min
    14 Hydraulic cutting Controlled by PLC
    15 PLC brand DELTA(TAIWAN)/Panasonic (Japan)
    16 Material of cutting blades Cr 12, quenching 58-62℃
    17 Frequency converter

    It has the advantage of slowing down before cutting, to ensure the

    length accuracy(±1mm, much better than industrial

    standard ±3mm).

    18 Switch CHNT
    19 Transducer DELTA(TAIWAN)



    Machine composition:



    Manual decoiler with brake---roll forming machine---PLC control system---hydraulic pump----runout table







    3. The Application



    This type of roofing  has advantage inclouding beautiful, classical appearance and grace taste.

    It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate

    4  Advantage



    1. Professional

    15 years' rich experience!

    a.Specialized in roll forming machine since 1998; b.Keeping improving the quality.

    2. Low price

    Save your money from every part!

    a. Low labor cost;

    b. Convenient transportation;

    c. Complete supporting industries.

    3. PLC

    Ensuring high accuracy and easy to operate!

    Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.

    4. OEM / ODM

    Customers’design, color & logo are also accepted!

    Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.

    5. One-Years warranty, whole life service

    Keep troubles far away from you!

    Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .
