Automatic Control Ibr Roofing Sheet Roll Forming Machine 14 Stages

Automatic Control Ibr Roofing Sheet Roll Forming Machine 14 Stages

    • Automatic Control Ibr Roofing Sheet Roll Forming Machine 14 Stages
    • Automatic Control Ibr Roofing Sheet Roll Forming Machine 14 Stages
    • Automatic Control Ibr Roofing Sheet Roll Forming Machine 14 Stages
    • Automatic Control Ibr Roofing Sheet Roll Forming Machine 14 Stages
    • Automatic Control Ibr Roofing Sheet Roll Forming Machine 14 Stages
  • Automatic Control Ibr Roofing Sheet Roll Forming Machine 14 Stages

    Product Details:

    Place of Origin: CHINA
    Brand Name: ZHONGHENG
    Certification: CE/ISO9001
    Model Number: ZH27-200-1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: 12800$
    Packaging Details: packaged by water proof plastic film cover
    Delivery Time: 40 working days
    Supply Ability: 50 Sets per months
    Contact Now
    Detailed Product Description
    Name: Automatic Control Ibr Roof Sheet Roll Forming Machine Manufacturer Material: GI/PPGI/ALZINC
    Effective Width: 1000 Motor Brand: Simesion
    Motor Power: 4KW Pump Motor: 4KW
    Forming Stations: 14 Roller Shaft: 75
    Chains: 1 Inch Speed: 10meters/min
    Cutting Device: Cut To Length Encoder: Omron

    Automatic control ibr roof sheet roll forming machine Manufacturer
    Automatic Control Ibr Roofing Sheet Roll Forming Machine 14 Stages
    Product description
    Type Roll former for roofing
    Shearing Thickness Up to Max. 0.8mm
    Thickness 0.4mm-0.6mm
    Feeding Width 1250mm
    Frame Design Wall-plate-frame-design /New-stand-frame-design
    Roll Stages 14 stages
    Material Of Forming Roller 45# steel, CNC lathes, Hard Chrome Coated
    Shafts Diameter Φ75mm
    Main Motor Power 7.5KW
    Max. Line Speed of Roll Former 15m/min (Higher speed is available, depends on the specification required by the buyer)
    Hydraulic Group Power 11KW
    Material of Cutting Blade Cr12, hear treatment
    Electric Standard 380V /50Hz/3PH or as per customer's requirements
    Machine Dimensions 9430mm×1960mm×1650mm
    Major Color of Machine Painted RAL 5015 (Blue) or as per customer's requirements
     Profile drawing
    Automatic Control Ibr Roofing Sheet Roll Forming Machine 14 Stages

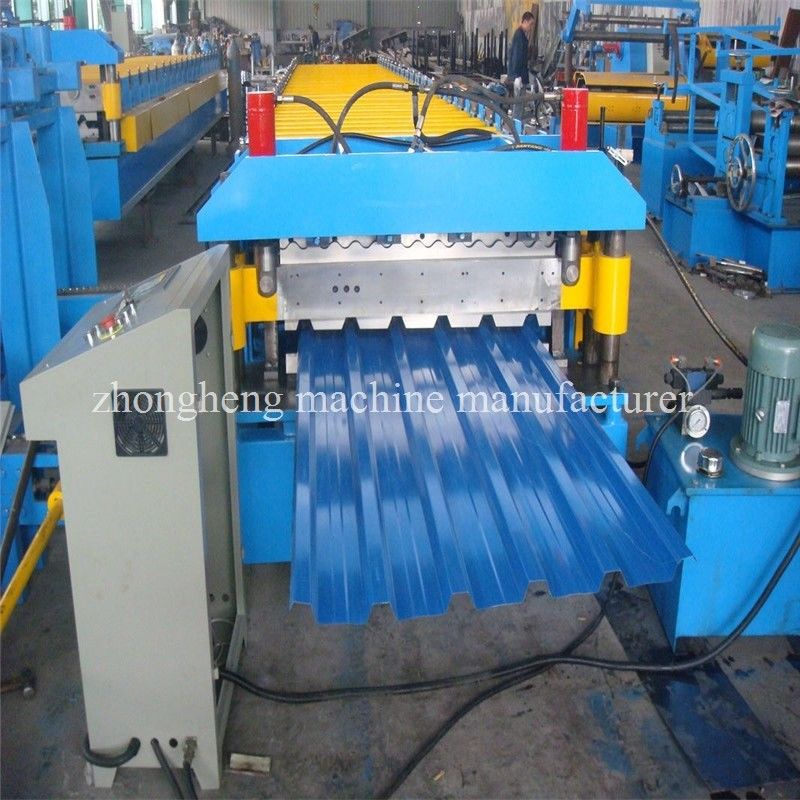

    Machine details pictures
    Automatic Control Ibr Roofing Sheet Roll Forming Machine 14 StagesAutomatic Control Ibr Roofing Sheet Roll Forming Machine 14 Stages
