Place of Origin: | China |
Brand Name: | ZHONGHENG |
Certification: | CE/SGS/ISO9001 |
Model Number: | ZH836 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD10000-15000/set |
Packaging Details: | Waterproof plastic film cover |
Delivery Time: | 25working days |
Payment Terms: | Western Union, T/T, L/C |
Supply Ability: | 300 sets/months |
Dimension(L*W*H):: | 7.2*1.3*1.6 M | Model Number: | 836 Corrugated |
---|---|---|---|
Weight: | 35000kg | Production Capacity: | 10-15m /min |
Forming Stations: | 13 | Color: | As Cutomer Requested |
Voltage: | 380V 50Hz 3phases | Coil Width: | 1000mm |
High Light: | metal roofing roll forming machine,roof panel roll forming machine |
18 Stations Steel Corrugated Sheet Roll Forming Machine For Construction

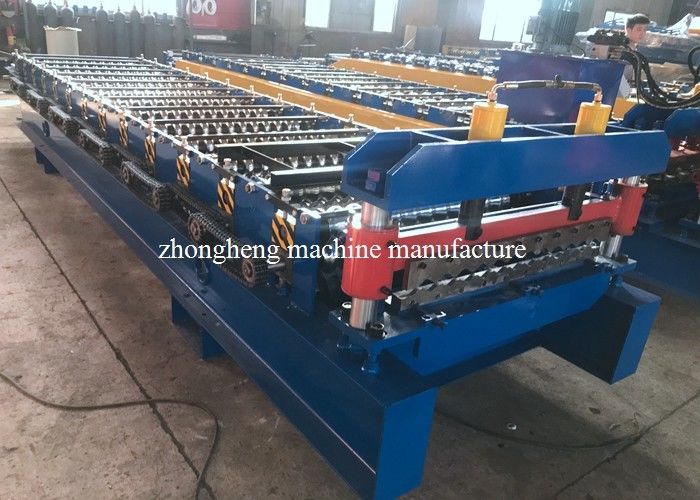

1.Machine pictures
2.Description:
Corrugated sheet roof forming machine type is the most popular model of roofing,its widely used in roofing and wall of the workshop.
There is two cylindas on the cutting head of this machine,the hydraulic oil is running into the cylinda,control the cutter easily.
3.Specifications
Roller steps | 13 |
Dimension | 6200*1600*1550mm |
Weight | 3.5t |
Feeding width | 1000mm |
Forming thickness | 0.35-1mm |
Large frame | 400mm H-Beam |
Diameter of roller | Φ70mm |
Middle plate | 16-25mm |
Chain Size | 1 inch |
Voltage | 380V 50HZ 3 phases or customized |
Motor power4 | 4kw |
Pump station power | 3kw |
Transducer power | 5.5kw |
Cutting system | Hydraulic cutting(avoiding noise and smooth cut) |
Material of cutting | Cr12 |
Control system | PLC brand :Panasonic |
Length error : ±2mm | |
Production capacity | 10-15m/min |
Warranty | 1 year and we provide technical support for whole life, and overseas service |
Maintain | Easily :Timely adding oil |
Payment terms | 30% in advance, the balance before delivery |
Package | Standard package |
Delivery | 35 days after receiving the deposit |
4.Components Details
Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
Main Frame | 350# steel. More stable and no shaking. |
Middle Plate |
16mm. We use thicker plates to ensure stability |
Forming Steps | 16, according to the drawing. |
Shaft Material | Φ70 mm, high grade 45# steel. |
Treating process: tempering- finish turning, |
|
Cutting |
Cr12, hardness HRC60-62. |
Treating process: heat treatment- plane abrasion- wire electrode cutting. |
5.Electric Components
Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
Screen | 7 inch touch screen, easy to operate. |
PLC | Delta DVP14ES |
Well-adapted to various conditions, such as moisture, |
|
Frequency Converter |
Delta VFD-M. It has the advantage of slowing down before cutting, |
Length |
Omron, made in Japan. |
It features with high accuracy and stability. |
