Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor

Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor

    • Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor
    • Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor
    • Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor
  • Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor

    Product Details:

    Place of Origin: China
    Brand Name: ZHONGHENG
    Certification: CE/SGS/ISO9001
    Model Number: ZH1100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD14000-15000/set
    Packaging Details: Waterproof plastic film cover
    Delivery Time: 25working days
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 300 sets/months
    Contact Now
    Detailed Product Description
    Dimension(L*W*H):: 7.2*1.3*1.6 M Model Number: 1100
    Forming Stations: 14 Color: As Cutomer Requested
    Voltage: 380V 50Hz 3phases Coil Width: 1250mm

    Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor

    Roof And Wall Panel Glazed Tile Roll Forming Machine PLC Control 5.5 KW Motor

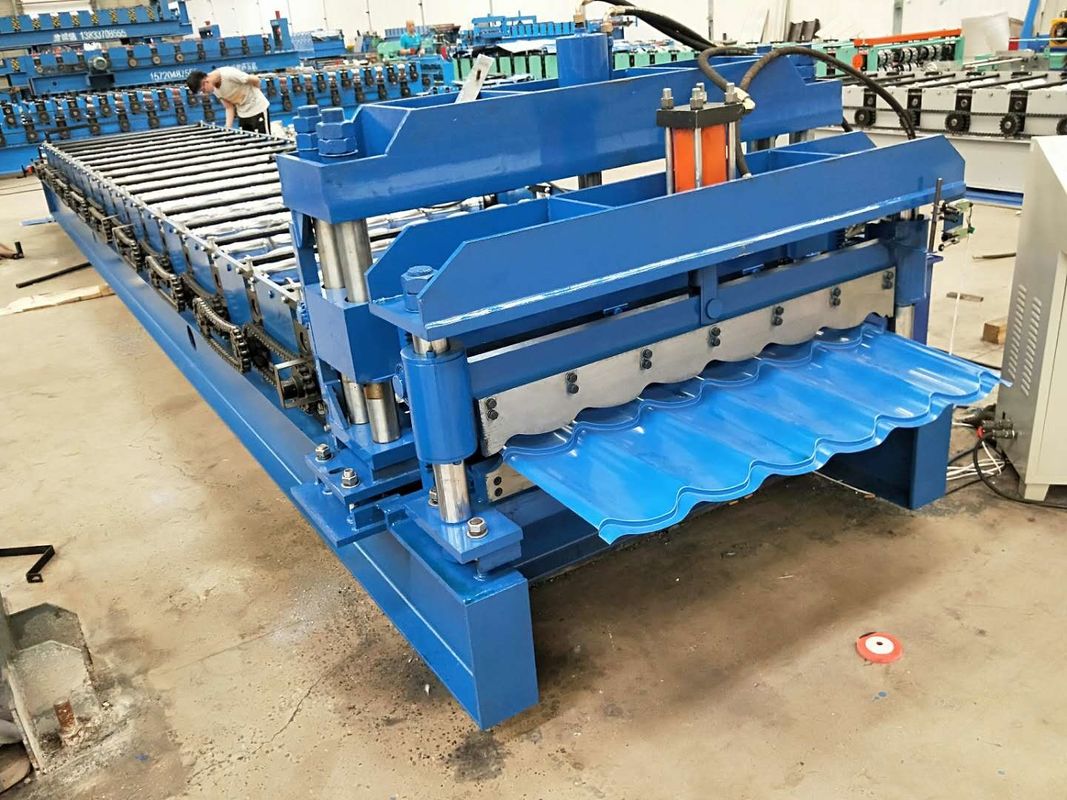

    1.Machine pictures
    Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor
    1. Work flow:
    manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system-- post cut-- output table


    Article No.Item NameSpecification
    1Width of feeding material1250mm coil sheet
    2Thickness of feeding material0.3mm-0.8mm coil sheet
    3Roller station13 stations
    4Shaft Diameter75mm
    5Productivity8-12m/min
    6Rollers' material45# steel forge
    7Shaft material45# steel
    8Weight2.5-8 ton
    9length7m
    10Voltage380V 50Hz 3phases
    11ControlPLC
    12Decoiler86Tons
    13Motor5.5kw
    14Driving wayChain transmission
    15Chain size1inch
    16Cutting systemHydraulic cutter


    2. Terms of payment.


    Payment type30% T/T payment in advance and balance paid by TT or irrevocable LC at sight.
    Delivery time30-40 working days after receiving the advance payment.


    3. Before ordering:
    We can help to analyze the roof tile in your market. Which one is popular and which one will be popular.
    Then your product is hot sale roof tile .

    We can confirm all details of the roof tile roll forming machine together, including the drawing, thickness of
    material, hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.

    We can help you to find the real manufacturer of steel coil manufacturer. Say bye to Trade company. So you can
    order the material coil with lowest price.

    4. During production:
    We can send the pictures to show you the schedule of your roll forming machines.
    We will show you my blogger account for you to learn knowledge of roll forming machine if you would like
    We will ask you what color of the roll forming machine body. Produce the machine under your suggestion

    5. After-sale service:
    We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and
    you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine

    We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp.
    ( I suggest that whatsapp or wechat is good. Because i can get your words timely) Important thing, you can write mail to me.
