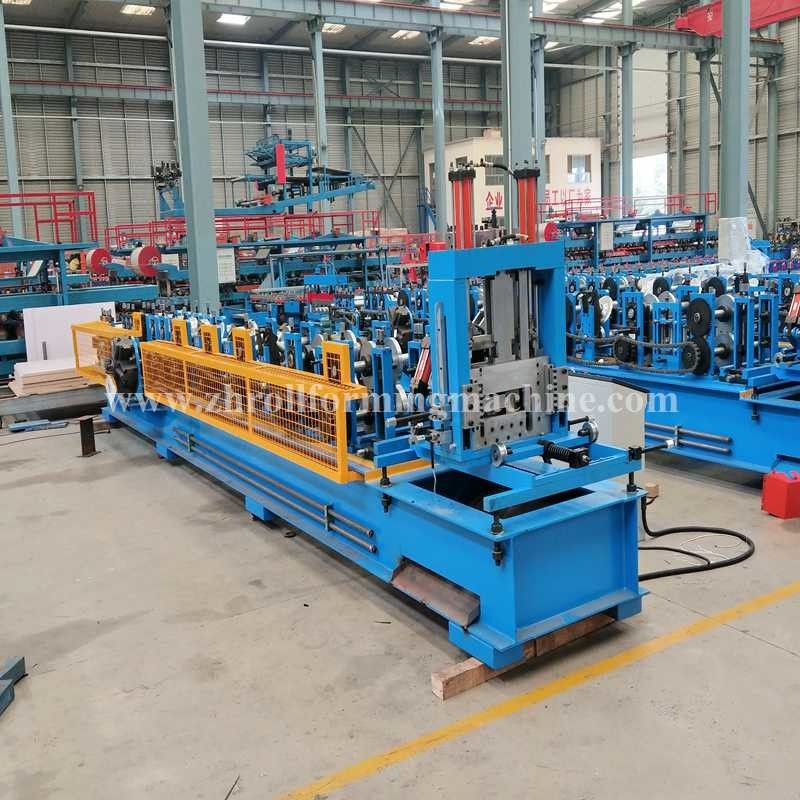

Machinery Metal Hydraulic C Purlin Roll Forming Machine Steel Roof Truss Making

Machinery Metal Hydraulic C Purlin Roll Forming Machine Steel Roof Truss Making

    • Machinery Metal Hydraulic C Purlin Roll Forming Machine Steel Roof Truss Making
    • Machinery Metal Hydraulic C Purlin Roll Forming Machine Steel Roof Truss Making
    • Machinery Metal Hydraulic C Purlin Roll Forming Machine Steel Roof Truss Making
    • Machinery Metal Hydraulic C Purlin Roll Forming Machine Steel Roof Truss Making
    • Machinery Metal Hydraulic C Purlin Roll Forming Machine Steel Roof Truss Making
    • Machinery Metal Hydraulic C Purlin Roll Forming Machine Steel Roof Truss Making
  • Machinery Metal Hydraulic C Purlin Roll Forming Machine Steel Roof Truss Making

    Product Details:

    Place of Origin: CHINA
    Brand Name: ZH
    Certification: CE
    Model Number: CZ300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1sest
    Price: USD 35500-45000
    Packaging Details: FILM COVER
    Delivery Time: 45 WORKING DAYS
    Supply Ability: 30 SETS PER MONTHS
    Contact Now
    Detailed Product Description
    Type:: Steel Frame & Purlin Machine Condition: New
    Work Pressure: 8-12Mpa Production: City: 20m/min
    Power(W): 15kw+15kw Power:: Hydraulic

                   Steel Roof Truss Making Machinery Metal Roll Forming U C Z Purlin Machines



    1.Main features of quick change CZ purlin roll forming machine



    The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:

    1.Produce different purlin size without changing rollers or spacers.

    2.No need changing cutter for different size.

    3.Easy operation, low maintenance cost

    4.Infinite sizing(any size within machine range),help to save material

    5.Optional Punch hole at any position of purlin web side and flange side



    2.Detailed Images of cz shaped steel forming machine



    Machine Parts

    1) CZ purlin machine punching system

    Brand: BMS Original: China

    with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.







    2) CZ purlin machine rollers

    Brand: BMS Original: China

    Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

    with black treatment or Hard-Chrome Coating for options.

    With feeding material guide, body framemade from 400# H type steel by welding







    3) CZ purlin machine post cutter

    Brand: BMS Original: China

    No need to change cutter for different size,

    made by high quality mold steel Cr12 with heat treatment

    Cutter frame made from high quality 30mm steel plate by welding
    Pre-punching & Pre-cutting, stop to punch, stop to cut
    hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa







    4) CZ purlin machine locating pin

    Brand: BMS Original: China

    C-to-Z purlin changing can finish within 5-10 minutes







    5) CZ purlin machine decoiler

    Brand: BMS Original: China

    ManualDecoiler: one set

    Un-powered,manually control steel coil inner bore shrinkage and stop

    Max. feeding width: 500mm, coil ID range 470mm±30mm

    Capacity: Max. 3Ton







    With 3 tons hydraulic decoiler for option







    6) CZ purlin exit rack

    Brand: BMS Original: China

    Un-powered,one unit
