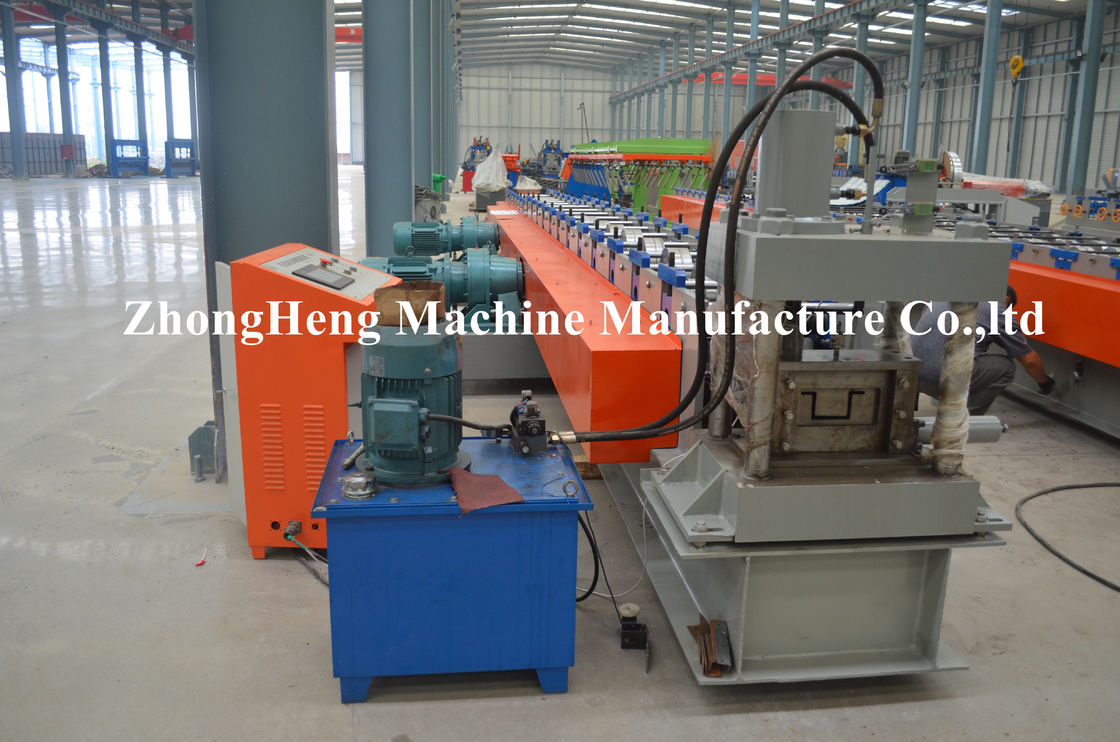

4mm Thickness U Section Stud And Track Roll Forming Machine For Greenhouse Structure

4mm Thickness U Section Stud And Track Roll Forming Machine For Greenhouse Structure

    • 4mm Thickness U Section Stud And Track Roll Forming Machine For Greenhouse Structure
    • 4mm Thickness U Section Stud And Track Roll Forming Machine For Greenhouse Structure
    • 4mm Thickness U Section Stud And Track Roll Forming Machine For Greenhouse Structure
    • 4mm Thickness U Section Stud And Track Roll Forming Machine For Greenhouse Structure
  • 4mm Thickness U Section Stud And Track Roll Forming Machine For Greenhouse Structure

    Product Details:

    Place of Origin: China
    Brand Name: ZHONGHENG
    Certification: ce/sgs/iso9001
    Model Number: ZH 100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD26500-38000/SET
    Packaging Details: Packed in plastic film cover
    Delivery Time: 45 working days
    Supply Ability: 60Set/month
    Contact Now
    Detailed Product Description
    Materail: Hot Deep Galvanized Steel Thickness: 3 Mm-4 Mm
    Usage: Construction For Greenhouse Power: 15 Kw+15kw
    Color:: Any Color According To Customer Forming Stations: 16

    4mm thickness U Section Cold Roll Forming Equipment For Greenhouse Structure



    Applications:

    The c profile is widely used in large wearhouse ,the purlin of steel construction.

    C purline formed by C purline forming machine,advantages of well compressive strength and flatness;

    automatioc measureing, cutting and punching; high-level of automation and conveniently installation.
    It can be used in the main body stress structure of the large and medium-size enterprises civil construction,

    like the plant, warehouse, especially greenhouse



    Specification

    No.

     Main parameter of C Shape Purline Roll Forming Machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    260

    3

    Rollers

    16 rows

    4

    Dimensions

    6.7*1.35*1.51m

    5

    Power

    15+15+7.5kw

    6

    Rolling material

    shaft bearing steel(quenching)

    6

    Thickness of the plate

    3mm-4mm

    7

    Productivity

    8-10m/min

    8

    Diameter of the roller

    90mm

    9

    Voltage

    380V 50Hz 3phases

    10

    Material of the cutting plate

    Cr12

    11

    Hydraulic

    40#

    12

    Processing precision

    Within 1.00mm

    13

    Control system

    PLC control

    Componse

    Name

    Quanlity

     Description

    De-coiler

      1 set

     MAX bearing: 5.0T

    Levelling device

      1 set

     Material:GCr15

    Roll forming part

      1 set

     GCr15(GCr12 available)

      Straighting device

      1 set

     GCr15/45# steel

    Hydraulic mold cutting

      1 set

     Cutting material: Cr12/Cr12MoV/Cr12

    (total three blades are equiped with these cutting sets)

    Product discharge  rack

      1 set

     6m





    Competitive Advantage:

    1. Heavy Duty

    2. Save space

    3. Low loss, easy operate

    4. High Efficency

    4mm Thickness U Section Stud And Track Roll Forming Machine For Greenhouse Structure4mm Thickness U Section Stud And Track Roll Forming Machine For Greenhouse Structure
