    Product Details:

    Place of Origin: CHINA
    Brand Name: ZH
    Certification: CE
    Model Number: CZ300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1sest
    Price: USD 38500-45000
    Packaging Details: FILM COVER
    Delivery Time: 45 WORKING DAYS
    Supply Ability: 30 SETS PER MONTHS
    Contact Now
    Detailed Product Description
    Type:: Steel Frame & Purlin Machine Condition: New
    Work Pressure: 8-12Mpa Production: City: 20m/min
    Power(W): 15kw+15kw Power:: Hydraulic
    High Light:

    c purlin roll forming machine

    ,

    c channel roll forming machine

    Good price cz purlin forming machine with 11.5kw motor and automatical cutting devices

    Steel Frame C Z Purlin Roll Forming Machine With 11.5kw Motor And Automatical Cutting Devices

    Steel Frame C Z Purlin Roll Forming Machine With 11.5kw Motor And Automatical Cutting Devices



    1.Design of profile(C&Z purling interchangeable)
    C purlin



    Width: 80-300mm
    Flange: 30-100mm
    Lip: 10-20mm
    Note:limitless cutting,all sizes can be changeable.Such as the li,flange,width.
    Z purlin


    Width: 120-300mm
    Flange: 40-100mm
    Lip: 10-20mm
    Note:limitless cutting,all sizes can be changeable.Such as the li,flange,width.



    Steel Frame C Z Purlin Roll Forming Machine With 11.5kw Motor And Automatical Cutting Devices



    profile of c z purlin

    Steel Frame C Z Purlin Roll Forming Machine With 11.5kw Motor And Automatical Cutting Devices

    Steel Frame C Z Purlin Roll Forming Machine With 11.5kw Motor And Automatical Cutting Devices

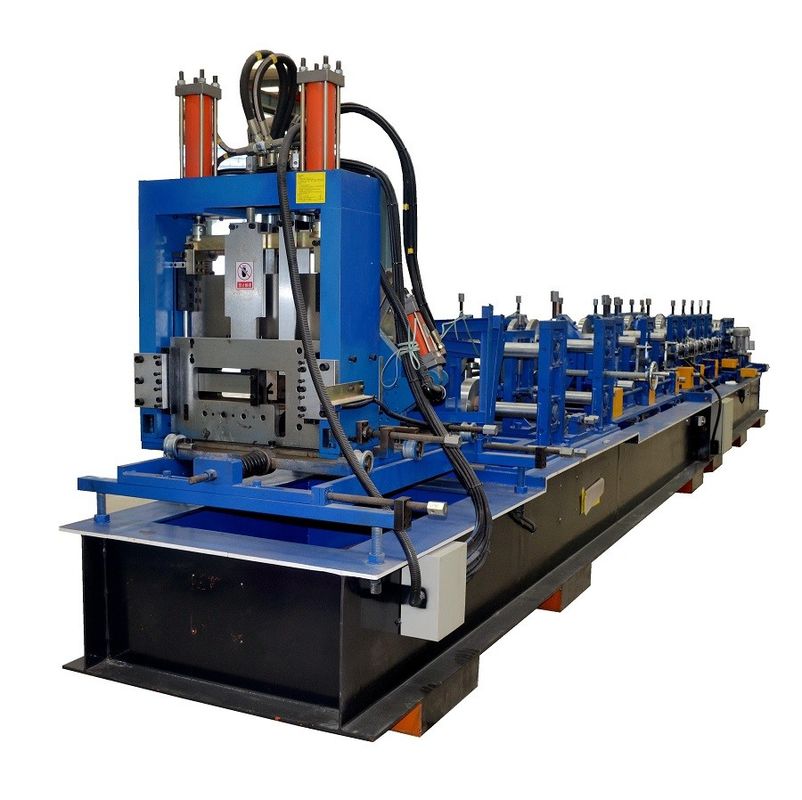

    interchangeable c and z purlin forming machine

    A) Working Flowing
    Decoiler ---- Roll Forming ---- Cut-to-length ---- Run out table
    B) Technical Data

    ).Suitable material to produce: Cold-rolled steel strip and heat-treated galvanized steel strip
    2).Thickness of raw
    material:
    Q345:1.5-2.5mm
    Q192:1.5-3.0mm
    Q235:1.5-3.0mm
    3).Decoiler: Decoiler type Manual type,passive type
    Bearing: 3-4tons
    Diameter 350-520mm
    4).Power of machine: Hydraulic motor power: 22kw
    Hydraulic punching&cutting: 5.5kw
    5).Hydraulic pressure: 16mpa
    6).Roll forming system: Feeding&levelling device: Gcr15
    Speed of machine: 15-20 meters/min
    Material of roller: Cr15 with quenched treatment
    Roll stations: 18 groups
    Material of main shaft: 40cr with high frequency
    grinding and heat treatment
    Diameter of main shaft: 70mm
    Punching type: Hydraulic punching
    Punching material: Cr12
    7).Cutting: Cutting material: Cr12 Cr12MoV Cr12 (total three blades)
    8).Control system: PLC controlControl the quantity &punching length& cutting length automatically
    The Machine will be stopped while it is punching and cuttingAutomatic Length measures and quantity counting (precision +- 3mm)
    Voltage: 380V, 3 Phase 50Hz
    PLC manufacturer: Japan Panasonic
    Transducer: Japan Panasonic
    9).Product support frame: 6 meters
    10)Weight of machine: 9.1tons
    11)Measurement: 9.1*1.4*1.8m

    Componse of machines



    Name Quanlity Description
    De-coiler 1 set MAX bearing: 5.0T
    Levelling device 1 set Material:GCr15
    Roll forming part 1 set GCr15(GCr12 available)
    Straighting device 1 set GCr15/45# steel
    Hydraulic mold cutting 1 set

    Cutting material: Cr12/Cr12MoV/Cr12

    (total three blades are equiped with these cutting sets)

    Product discharge rack 1 set 6m



    Steel Frame C Z Purlin Roll Forming Machine With 11.5kw Motor And Automatical Cutting DevicesSteel Frame C Z Purlin Roll Forming Machine With 11.5kw Motor And Automatical Cutting Devices
