| Place of Origin: | China |
| Brand Name: | ZHONGHENG |
| Certification: | ce/sgs |
| Model Number: | ZH27-200-1000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 22500-32000 |
| Packaging Details: | plastic film cover |
| Delivery Time: | 25 working days |
| Supply Ability: | 30 sets /month |
| Material: | PPGI | Diameter Of The Shaft: | 75mm Solid |
|---|---|---|---|
| Motor: | 5.5kw | Pump: | 4kw |
| Speed: | 10-15m/min | Chains: | Double 0.6 Inch |
| High Light: | roof panel roll forming machine,roll forming equipment |
||
metal roofing iron sheet zink metal building material cold roll forming machine from machinery
| Length of the main part | About 8500*1650*1500mm |
| Weight of main part | About 6.5 ton |
| Voltage | 380V/50HZ3Phase (as customer`s request) |
| Roller fixer | Middle plate welded |
| Frame | 350H steel welded |
| Middle plate thickness | 20mm/18mm/16mm/14mm/12mm |
| Drive mode | Chain Drice//Gear Drive |
| Material of rollers | 45# steel, surface hard chromium plating. |
| Material of shafts | 45# steel |
| Diameter of shafts | Φ80mm(depend on defferent design) |
| Number of rollers: | 14 rollers |
| Main power | 5.5kw |
| Cutting&Hydraulic | Double guide pillar |
| Hydraulic motor power | 3kw,4kw |
| Hydraulic Pressure | 10-12MPa |
| Cutting drive | Decelerating motor + Chain drive gear all by high-frequency |
| Control System | PLC system: Mitstubishi, Panasonic,Detal,Siemens,Schneider |
| Feeding Material width | Better as your drawing or from our designer |
| Feeding Thickness | 0.3-0.8mm |
| Effective width | Better as your drawing or from our designer |
| Productivity | 12-20/min |
| Package of machine | Waterproofing membrane, standard export packing |
A. General
| Suitable Material | Q235 or equivalent |
| Material Thickness | 0.25-0.8 mm |
| Material Width | 914, 1000, 1200, 1220 or 1250, as per the drawing |
| Dimension | About 5.9*1.3*1.1m(L*W*H) , as per the drawing |
| Working Space | About 15.9*2.8m(L*W) , as per the drawing |
|
Length of the Sheet |
You can set the length according to your need. It is controlled by PLC which can ensure the accuracy of ±1mm. |
| Cutting |
Automatically stop and cutting when it comes to the set length. |
B. Components Details
| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate |
16mm. We use thicker plates to ensure stability of our products. |
| Forming Steps | 11-16, according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. |
|
Treating process: tempering- finish turning, high rigidity, hard to deform. |
|
|
Cutting Blade Material |
Cr12, hardness HRC60-62. |
| Treating process: heat treatment- plane abrasion- wire electrode cutting. |

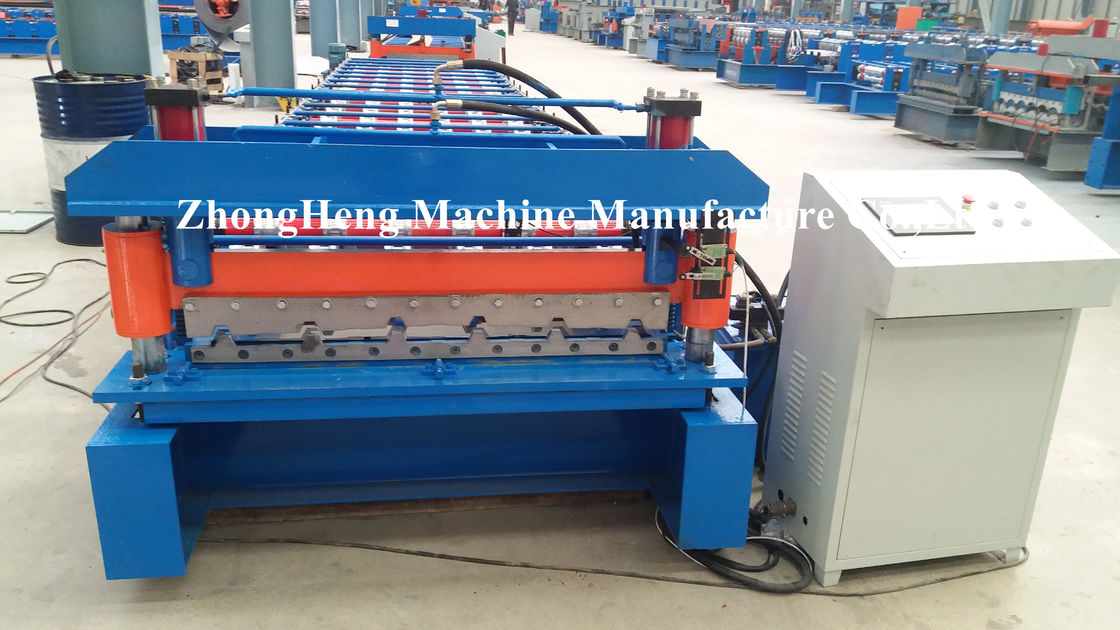

| 3. machine pictures |
