| Place of Origin: | China |
| Brand Name: | ZHONGHENG |
| Certification: | CE/SGS/ISO9001 |
| Model Number: | ZH18-76 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $ 32000-42000/set |
| Packaging Details: | Water proof plastic film cover |
| Delivery Time: | 25 working days |
| Supply Ability: | 100 sets/months |
| Condition: | New | Feeding Width: | 1000mm / 914mm / 950mm / 1200mm |
|---|---|---|---|
| Suitable Material: | PPGI / GI | Use: | Roof |
| Warranty: | 2 Years | Thickness Range: | 0.18mm-0.28mm |
| Weight: | 7.5t | ||
| High Light: | corrugated sheet roll forming machine,roll former machine |
||

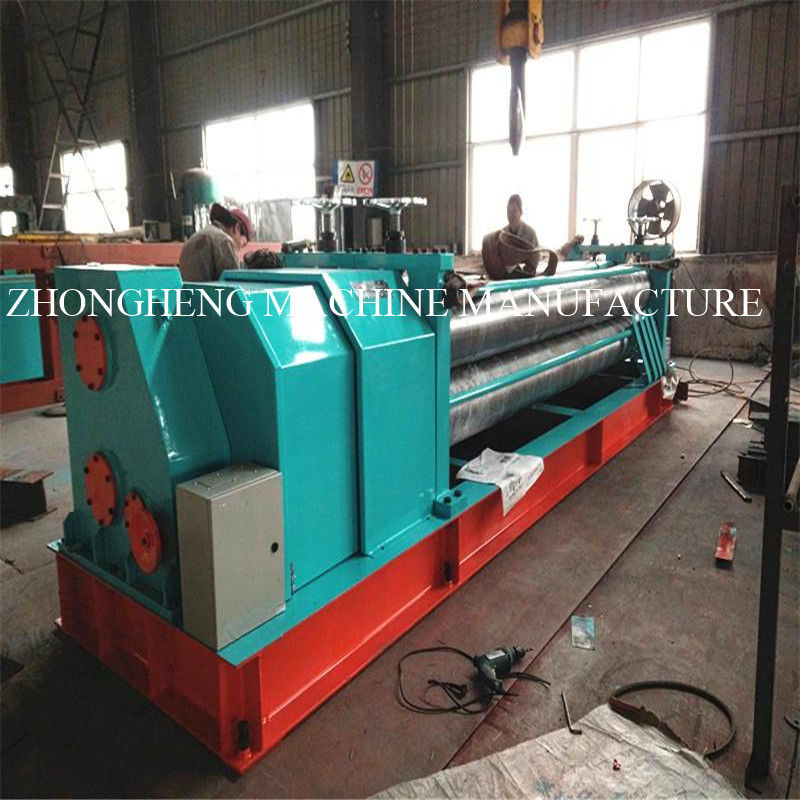

Thin material Barrel Corrugation Machine with 11 kw motor control for Nigeria
Description:
This kind of corrugated sheet forming machine is different model from the normal corrugated sheet forming machine, it is specially produce the thickness 0.18mm-0.28mm galvanized steel, it has 3.2meters, 4meters,6meters three types. Its formed by pieces of sheet not coils.
Specification
|
Barrel Corrugated Roof Tile Machine |
|
|
Techincal Parameters |
|
|
Suitable Material |
Full Hard, Semi-hard, Soft Galvanised Sheets, Alu-zinc Alloy & PPGI Sheet |
|
Material Length |
2500/3000/3660/4267 mm |
|
Material Width |
762/914/1000 mm to 1250mm |
|
Material Thickness |
0.15-0.45 mm |
|
Drive |
22KW, AC For Type A 3 Phase |
|
O.D of Corrugation Rolls |
380 mm (20mm Diameter Rod ) |
|
O.D of Pinch Rolls |
317 mm |
|
Corrugation Parameters |
As per 3316 to Jis-Sgch-1987 |
|
WT. of the machine |
6 tones Approx |
|
Production Capacity |
1.5-1.8 meter per minnute |
Applications:
The tiles produced by this Popular Type Corrugated Colored Steel Cold Forming Machine are widely used in
all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency
and reliable working. It consists of feeding platform, main molding core, shearing mechanism, hydraulic
station, computer control cabinet, high precision counter and so on.
Competitive Advantage:
1. save space
2. easy installation
3. best after-sale service
4. excellent quality
5. Operate easily
