| Place of Origin: | Hebei , China |
| Brand Name: | ZH |
| Certification: | CE |
| Model Number: | ZH-45 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-15000 per set |
| Packaging Details: | One set machine needs one 40GP for shipment , PLC system packed with Carton box . |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Automactic Stud And Track Ceiling Drywall Roll Forming Machine PLC Control System | Feature: | Advanced Design |
|---|---|---|---|
| Special: | Hydraulic Cutting | Power: | 5.5+4KW |
| Volgate: | 380V Or Custom | Roller: | No.45 Steel With Heat Treatment |
| Warranty: | 1 Year Free | Service: | Whole Life |
| High Light: | stud and track forming machine,metal stud and track roll forming machine |
||
10 Steps Light gauge Steel Framing Machine, C U Stud And Track Rolling Machine

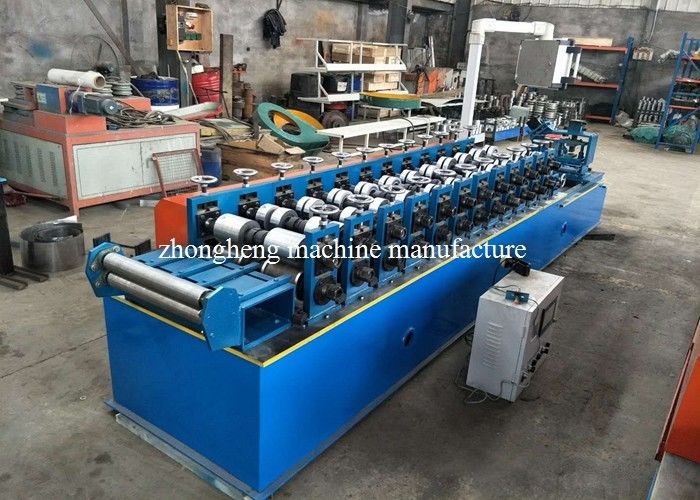

1.Machine picture
2 Detailed picture
3. Components of machine
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Hydraulic Cutting Device | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 300mm | 500mm |
| Capacity | Max 3tons | From 3-5 tons |
| Inner diameter | φ450-550mm | φ450-550mm |
| Outer diameter | φ1500mm | φ1800mm |
roll forming
| Item | Parameter detail | ||||||||
| Processing Material | GI and PPGI | ||||||||
| Material thickness | 0.4-0.8mm | ||||||||
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision | ||||||||
| Machine siding panel |
|
||||||||
| Forming stations | 10-22 stations(according to the profiles) | ||||||||
| Machine rollers | high grade Cr12 steel,plated hard chroming with thickness 0.05mm Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming |
||||||||
| Machine Shaft | φ60-70mm high garde No.45 steel after treatment, | ||||||||
| Machine spacers | CNC lathing in high-precision | ||||||||
| Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||||
| Driving system | Gear or gear box(option) | ||||||||
| Machine power | 3kw-5.5kw(according to the profiles) | ||||||||
| Machine working speed | 8-12m/min or 10-30m/min(option) | ||||||||
| Machine adjust type | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
Cutting
| Type | Mould cutting type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing | the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Stacker
| Type | Manual | Auto(option) |
| Length | 1.5m-2m | 6m or 12m |
PLC
| Main item | Parameter detail |
| PLC | Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor | 3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
Description
1. Metal stud and track roll forming machine is the most common machine to produce cold rolled C stud and u track profiles. It is the most popular machine in light building construction area.
2. We are professional manufacturer of metal stud and track roll forming machine and have lots successful experiences. Our roll forming machine for C stud and u track can make the C stud and u track from thickness 0.5mm-1.2mm. Very portable!
3. The whole line of metal stud and track roll forming machine include the automatic decoiler or manual decoiler for 3ton coils , roll forming machine include the guide& feeding device, cutting blade drived by hydraulic power and auto stacker or manual stacker for finished products.
4. This line can be automatic running by inputting the length and batches in the PLC system.
5. The strong H beam base is treated to avoid the vibration when working.
6. All the rollers are hardness quenched to guarantee the life
7. The human computer interface operate system will save human source to operate the production line.
Free to Contact us
