|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||packaged by waterproof film cover|
|Delivery Time:||30 working days|
|Supply Ability:||80 sets/months|
|Condition:||New||Type:||Cold Roll Forming Machine|
|Suitable Material:||Galvanized Steel||Thickness:||0.5mm / 0.6mm|
double layer roll forming machine,
light keel roll forming machine

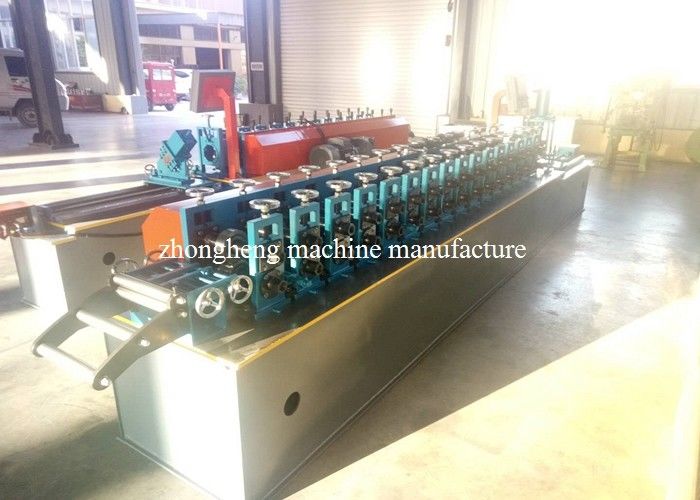

Window box metal section Roll Forming Machine For 1.2mm SS
This kind of channel used for Window section
1. Light,good strength,cauterization resistance and water resistance;
2. Matching magnesium fire-proof board,gypsum board,and many other wall and ceiling board;
3. Save Space,two profiles made in one machine .
4. Easy and fast for installation,time-saving;
5. prompt delivery,high quality,competitive price and complete sets of style;
6. We can supply you the products based on your specific requirements;
This machine is produce the L angle profile,its the edge of the profile assistant for the U and C stud when stallation.
Main Motor power
Not include the time of cutting
Material of rollers
Thickness of structure
Forming shaft diameter(mm)
Type of cutting
Install dimension(depend on the final design)
Without panel length
Total weight (Approx)
Depend on final design
Text screen /touch screen
1.Manual Decoiler part
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
2. Coil feeding part
Usage:Put the raw material(steel plate) through the beach to manufacture and process,
it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.
3.Main roll forming machine part
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor
reducer drive, chain transmission,roller was chromed which can keep the molding plate surface
smooth and not easy to be marked when it is working
4.Automatic cuttting system part
It adopts the hydraulic drive and automatic encoder to cut the accurate length you set on the computer.The tolerance is within 10m±1mm
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine
5.Computer controlling part
1).PLC brand: Normally, it is Delta. Mistubishi, Panasonic, Siemens are optional.
2).working model: fully automatic and manaul
3).working language: normally are English, Chinese,Russia. Can be set as per your requirements.
6. Hydraulic station
1).including one motor,one oil tank,one magnetic valve,one pressure gage, hydraulic oil tube
2).3kw,4kw,5.5kw,will be adopted as per your profile sheet.
