| Place of Origin: | Hebei , China |
| Brand Name: | ZH |
| Certification: | CE |
| Model Number: | ZH-1100 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD15000-18000 per set |
| Packaging Details: | One set machine needs one 40GP for shipment , PLC system packed with Carton box . |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Name: | 3D Cutting Monterey V1100 Tile Cold Roll Forming Machine | Feature: | Advanced Design |
|---|---|---|---|
| Special: | Hydraulic Cutting | Power: | 4+4KW |
| Volgate: | 380V Or Custom | Roller: | No.45 Steel With Heat Treatment |
| Warranty: | 1 Year Free | Service: | Whole Life |
| High Light: | roof tile roll forming machine,ridge cap roll forming machine |
||
3D Cutting Monterey V1100 Tile Cold Roll Forming Machine
we are specialized manufacturers from China, Wall and Roof Roll Forming Machine, Roof Roll Forming Machine suppliers/factory, wholesale high-quality products of Wall Roll Forming Machine R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!
Specifications
| Description | Specification | |
| Main moter power | 5.5KW | |
| Hydraulic station power | 4KW | |
| Hydraulic oil pump | CB-E310 | |
| Sprocket | P-25.4 | |
| Roller station | 14 | |
| Yield strength | 32MPa | |
| Diameter of principal axis | 75MM | |
| Material of roller | 45#steel hard chrome plating | |
| Processing speed | 8m/min | |
| Thickness | 0.3-1mm | |
| Installation dimension about(L*W*H) | 7.5*1.5*1.2M | |
| Total weight | 3.8T | |
| Equipment parts includes:forming machine,hydraulic cutter,hydraulic station,electric controlling system,counter,product supporter | ||
Discription
Monterey V1100 Tile Roll Forming Machine For Sale
What’s Monterey V1100?

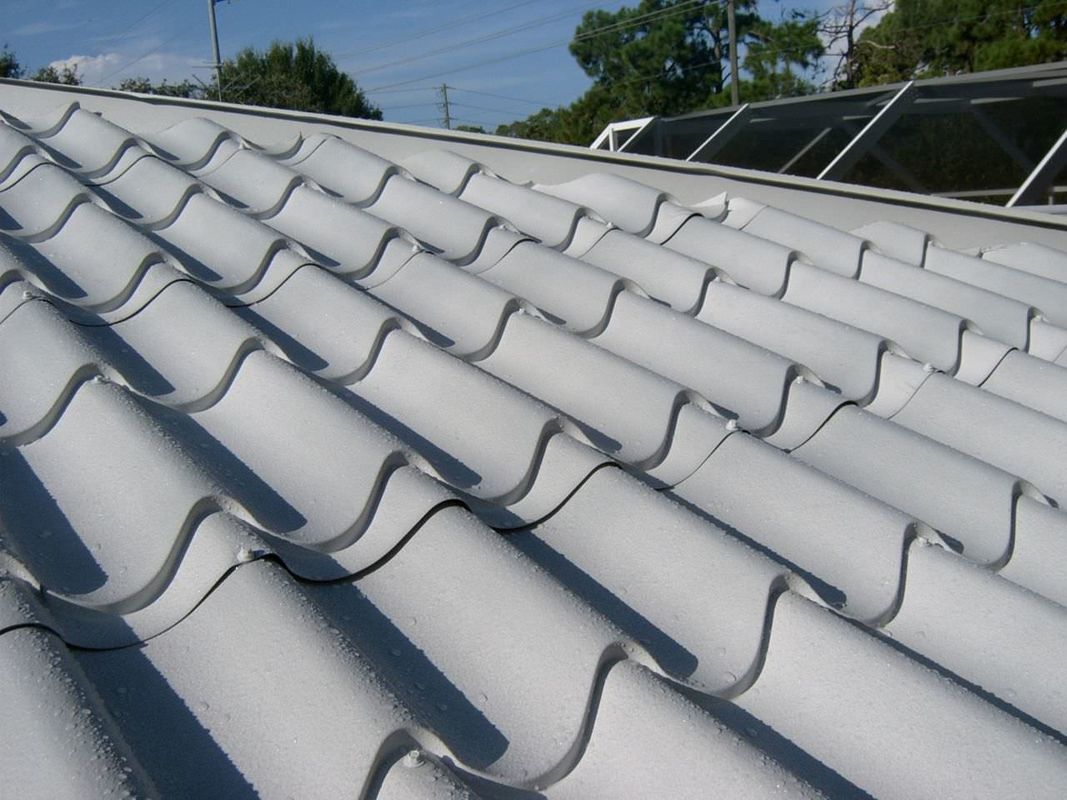

Monterey V1100 is a very famous tile profile which is widely used in Russian. As usual, the tiles will be covered with a compete polymer costing( Plastic Film). To protect the tile against corrosion, and make the roof durable.
Russian producer product the tile with a step of 300mm, 350mm and 400mm. With the thickness is from 0.3-0.8mm. The advantage of Montery is two special grooves for drainage of condensate from the inner surface of the sheet.
Metal Roof tile roll forming machine is also called step tile roof roll forming machine, glazed roof tile roll forming machine, 3D roof tile roll forming machine, etc. ZHONGHENG have full automatic machine for metal tiles, and also accept customized profile design.
3D Cutting Monterey V1100 Tile Cold Roll Forming Machine
Uncoiler Capacity: 5 Ton
Uncoiling Width: 600-1250mm
Material Thickness: 0.2-0.8mm
Main Motor Power: 7.5KW
Forming Stands: 16-26 Depends on profile design
Rollers Material: ASTM 1045, Chromed 0.05mm thickness
Shaft Material: ASTM 1045, 75mm OD
Hydraulic Power: 4KW
PLC Brand: Delta
