| Place of Origin: | China |
| Brand Name: | ZHONGHENG |
| Certification: | CE / SGS |
| Model Number: | ZH312 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12500-18500/set |
| Packaging Details: | Packed in plastic film cover |
| Delivery Time: | 35 working days after received your payment |
| Payment Terms: | T / T or western Union, L/C |
| Supply Ability: | 120 sets per month |
| Voltage: | 380V 50HZ | Forming Stations: | 14 |
|---|---|---|---|
| Speed: | 2-3m/min | Plc: | Delta |
| After-sale Service Provided: | Engineers Available | Warranty: | 2 Years |
| High Light: | ridge cap roll forming machine,roof tiles making machine |
||

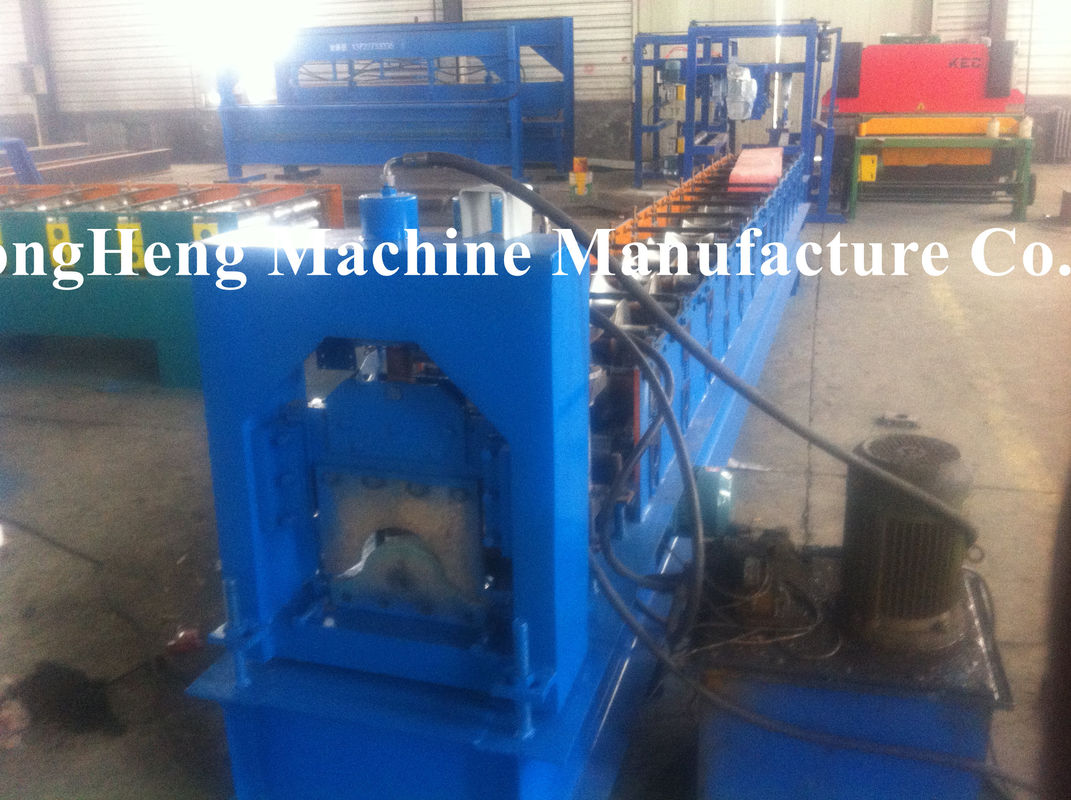

Ridge Cap Forming Machine Delta PLC Inverter 312 Steel Roof Tiles Making Machine
1.Technical Parameters
|
No |
Item |
Parameter |
Remark |
|
|
1 |
Suitable
Material |
Type |
Color Steel |
|
|
Width(mm) |
312 |
According to customer's requirement |
||
|
Thickness(mm) |
0.4-0.8 |
According to customer's requirement |
||
|
Yield Strength(Mpa) |
230-300 |
According to customer's requirement |
||
|
2 |
Forming Speed(m/min) |
2-3m/ |
Including Punching |
|
|
3 |
Roller Material |
No.45 steel |
with hard chromized |
|
|
4 |
Cutting Model |
Hydraulic Cutting |
According to customer's requirement |
|
|
5 |
Power source |
Type |
380V/3PH/50HZ |
According to customer's requirement |
2.Components of the machine
|
No |
Name |
Quantity |
Remarks |
|
|
1 |
Decoiler |
|
1set |
Up to customer |
|
2 |
Main Machine |
Pre-cutting Device |
1set |
Up to customer |
|
Feeding Device |
1set |
|
||
|
Roll Forming |
1set |
|
||
|
Punching Die and Post-cutting |
1set |
|
||
|
Hydraulic System |
1set |
|
||
|
3 |
Electric Control System |
1set |
|
|
|
4 |
Supporter/Automatic Stacker |
1set |
Up to customer |
|
3. Flow chart
4. Description:
This set of machine produce the final product is ridge ,it is used to matach with the gazed tile for installation.This model of ridge cap is the commenly easy use type.
5. Competitive Advantage:
6. Applications:
Equipment can be designed and manufactured as customers' requests.Easily solve the problems for customer,this equipment with cover ,effectively avoid workers hands in.
