| Place of Origin: | Hebei , China |
| Brand Name: | ZH |
| Certification: | CE |
| Model Number: | ZH-1000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD9000-15000 per set |
| Packaging Details: | One set machine needs one 40GP for shipment , PLC system packed with Carton box . |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Roofing Sheet Roll Forming Machine | Feature: | Fast Speed |
|---|---|---|---|
| Special: | Electric Cutting | Power: | 4+4KW |
| Volgate: | 380V Or Custom | Roller: | No.45 Steel With Heat Treatment |
| Warranty: | 1 Year Free | Service: | Whole Life |
| High Light: | metal roofing roll forming machine,roof panel roll forming machine |
||

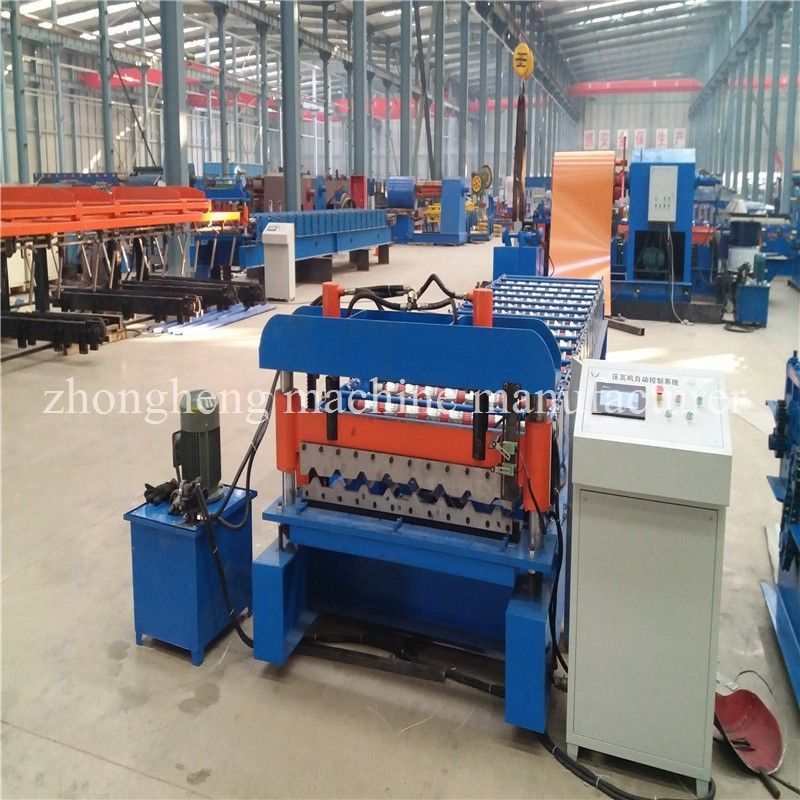

Fast speed Zinc roof sheet roll forming machine with electric cutting 30m/min
2. Working Flow of Fast speed Zinc roof sheet roll forming machine with electric cutting
Manual decoiler→ Feeding material into machine →Roll forming machine →Measure length→Electric cutting →Finished Products
3. Technical parameters of Fast speed Zinc roof sheet roll forming machine with electric cutting
|
Zinc roof sheet roll forming machine |
||
| 1 | Suitable to process | Color steel |
| 2 | Width of the raw material | 1000/1200/1220/1250 |
| 3 | Output width | 1000 or custom |
| 4 | Rollers | 16 rows |
| 5 | Power | 4kw+4kw |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity |
12-15m/min or 25-30m/min by servo motor |
| 8 | Diameter of the roller | 72mm |
| 9 | Weight | About 4 T |
| 10 | Voltage | 380V 50Hz 3phase |
| 11 | Received table | 6 meters |
| 12 | Raw material of the cutter | Cr12 |
| 13 | Raw material of the roller |
Bearing steel |
FAQ
1. You are the manuafacturer or trading company ?
A: We are the professional manufacturer , and we have more than 20 years professional experiece in the field of roll forming machine.
2. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team to work out the most suitable design and production plan
for the machine.
3. How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
4.What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement parts free of charge
for any damaged parts caused by quality problems after two years,you need to buy by factory cost
