| Place of Origin: | Hebei , China |
| Brand Name: | ZH |
| Certification: | CE |
| Model Number: | ZH-1050 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-15000 per set |
| Packaging Details: | One set machine needs one 40GP for shipment , PLC system packed with Carton box . |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Roof Panel Metal Roll Forming Machine | Feature: | Long Life Time |
|---|---|---|---|
| Special: | Hydraulic Cutting | Power: | 5.5+4KW |
| Volgate: | 380V Or Custom | Roller: | No.45 Steel With Heat Treatment |
| Warranty: | 1 Year Free | Service: | Whole Life |
| High Light: | roof panel roll forming machine,roll forming equipment |
||

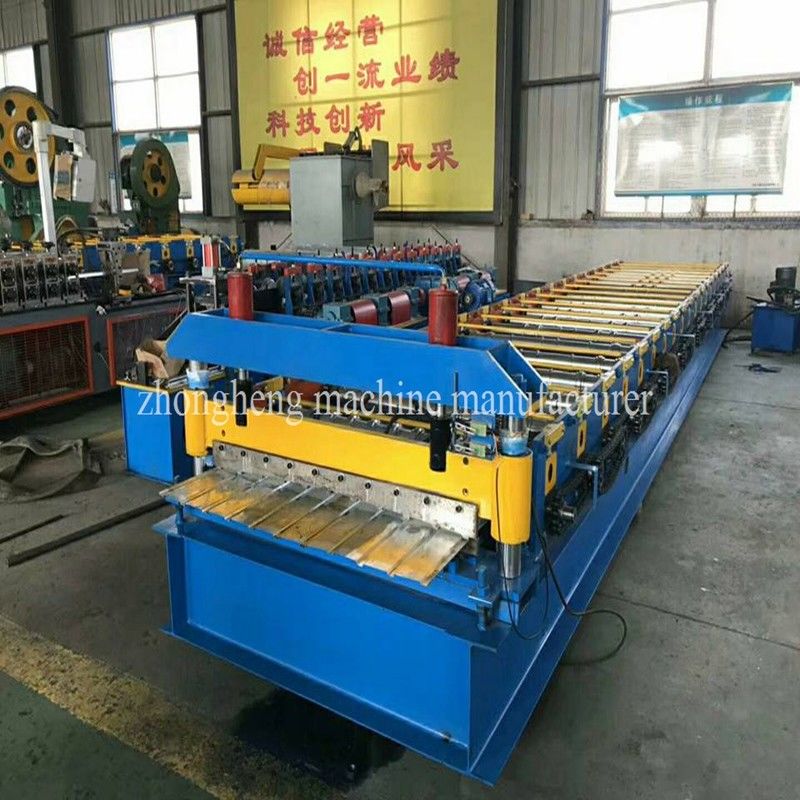

1050 Type Roof Panel Metal Roll Forming Machine / Roofing Sheet Making Machine
Working processing of Metal Roofing Panel Roll Forming Machine
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving
Quick Details
| NO. | Type | Specification | Remarks | |
|
1. |
Raw material |
Type | GI | |
| Thickness | 0.8-1.2mm | |||
| Yield strength | 235Mpa TO 350Mpa | |||
|
2. |
Decoiler |
Operation | Manual | |
| Weight apacity | 6tons | |||
|
3. |
Main body |
Roller station | 28 stations | |
| Diameter of shaft | 90mm | |||
| Material of rollers | 45# steel with chrome 0.05mm | |||
| Material of shaft | 45# steel with chrome 0.05mm | |||
| Frame | 350mm H-Beam | |||
| Chain | 1.5 inches | |||
|
4. |
Cutter |
Operate | Automatic hydraulic type | |
| Blade Material | CG12 | |||
| Number | One hydraulic cutter | |||
|
5. |
Power |
Pump motor for cutter | 5.5kw | |
| Main motor | 15kw | |||
| Voltage | 380V 50HZ | |||
|
6. |
Control system |
Electric Box |
PLC control system, Inverter, encoder |
|
| Language | English | |||
| 9. | Speed | 8-12m/min | ||
1). Packing method: Nude, with waterproof cloth and stow-wood. The computer controlled cabinet is packedwith waterproof cloth and box. The seller should guarantee equipment will be moisture-proof, anti corrosive,and will not be damaged during transportation.
2). Payment Term: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping out the goods.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit from the buyer.
4). Service: We could send the technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.
5). Warranty: 12 months
During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee. We will also send one set CD and specification(Chinese and English) to you with the machine, they can teach you how to operate the machines.
