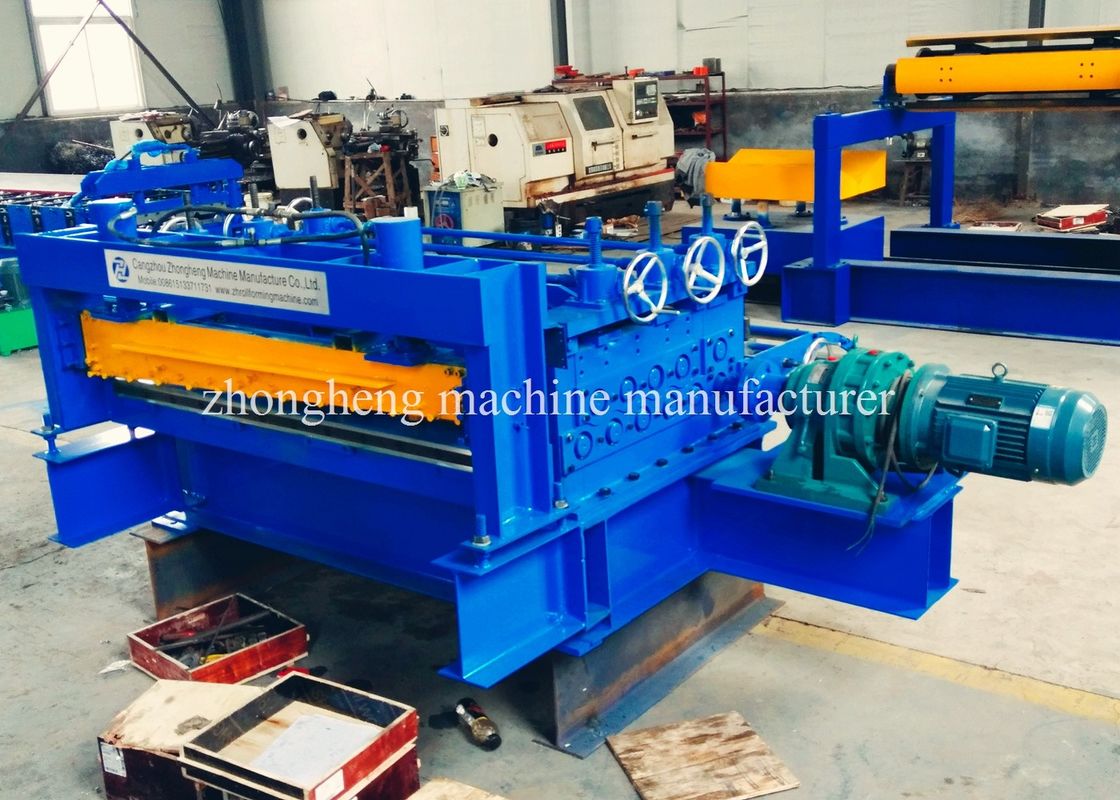

Galvanized Steel Coil Uncoiling Slitter Rewinder Machine 180KW 380V

Galvanized Steel Coil Uncoiling Slitter Rewinder Machine 180KW 380V

Galvanized Steel Coil Uncoiling Slitter Rewinder Machine 180KW 380V

Product Details:

Place of Origin: Hebei , China
Brand Name: ZH
Certification: CE
Model Number: ZH-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD110000-150000per set
Packaging Details: One set machine needs one 40GP for shipment , PLC system packed with Carton box .
Delivery Time: 80 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Type: Galvanized Steel Coil Uncoiling And Slitting Line With Rewinding Function Feature: Advanced Design
Special: Fast Speed Power: 180KW
Volgate: 380V Or Custom Roller: No.45 Steel With Heat Treatment
Warranty: 1 Year Free Service: Whole Life
High Light:

steel coil slitting machine

,

cut to length line

Galvanized steel coil uncoiling and slitting line with rewinding function

More information feel free to contact Rebecca

WhatsApp/Wechat : +86 15720370230

Our Galvanized steel coil uncoiling and slitting line with rewinding function can work 0.3mm up to 3mm thickness . The strips can be used in small forming machines such as gutter and rige cap system .

Also used in light gauge steel villa and welding pipe industires .

Galvanized Steel Coil Uncoiling Slitter Rewinder Machine 180KW 380V

Galvanized Steel Coil Uncoiling Slitter Rewinder Machine 180KW 380V

Galvanized Steel Coil Uncoiling Slitter Rewinder Machine 180KW 380V



Galvanized steel coil uncoiling and slitting line with rewinding function Advantage

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.0.3-3mm 3mm galvanized steel coil slitting and recoiling line



15T Hydraulic Uncoiler

Function: Supporting coil and fix it , start motor to lead plate into leveling machine

Motor AC 7.5 KW

Mandrel diameter:φ508mm

Manipulator: Hydraulic pressure drive.

Braking: Pneumatic brake

Capacity:15T




Galvanized Steel Coil Uncoiling Slitter Rewinder Machine 180KW 380V
Galvanized Steel Coil Uncoiling Slitter Rewinder Machine 180KW 380V

Levelling and cutting device

Leveling machine has 5 roller up and 6 rollers down

Motor AC 7.5KW

Crop shear: Drive by oil hydraulic cylinder, cut off the crude steel plat head for following processing.



Main Slitting Machine

Adopts Japanese Circle cutter, can shear different

Size strips .

Main axis material 40CR, diameter Φ240mm

Blade material: Cr12Mov

Motor :18-22 KW

Strips size adjustable

Galvanized Steel Coil Uncoiling Slitter Rewinder Machine 180KW 380V
Galvanized Steel Coil Uncoiling Slitter Rewinder Machine 180KW 380V

separated steel strip, which form a certain tension before send to the recoiler, to complete winding operation

collect the steel strip after slitting closely

Motor: 22KW

Galvanized Steel Coil Uncoiling Slitter Rewinder Machine 180KW 380V



Our Service



Galvanized Steel Coil Uncoiling Slitter Rewinder Machine 180KW 380V Galvanized Steel Coil Uncoiling Slitter Rewinder Machine 180KW 380V

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

Galvanized Steel Coil Uncoiling Slitter Rewinder Machine 180KW 380V Size: 15000 (L) * 1850 (W) * 1510 (H)
Weight: 20T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.
