| Place of Origin: | Hebei , China |
| Brand Name: | ZH |
| Certification: | CE |
| Model Number: | ZH-1500 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD16500-19500 |
| Packaging Details: | One set machine needs one 40GP for shipment , PLC system packed with Carton box . |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 sets per month |
| Type: | Cut To Length Machines , Steel Coil Slitting Line For Construction | Feature: | Advanced Design |
|---|---|---|---|
| Special: | Fast Speed | Power: | 11KW |
| Volgate: | 380V Or Custom | Roller: | Cr12 Heat Treatment |
| Warranty: | 1 Year Free | Service: | Whole Life |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Application: | The Steel Coil For Longitudinal Cutting,steel Coil Cutting To Length |
| Voltage: | 380/415/420V Etc |
2mm thickness high speed cut to length machine
Our 2mm thickness high speed cut to length machine can work 0.3mm up to 2mm thickness Galvanized steel coils and Prepainted steel coils .It is with slitting function to slitte the coils to strips.Maximal width 1500mm
Also used in light gauge steel villa and welding pipe industires .

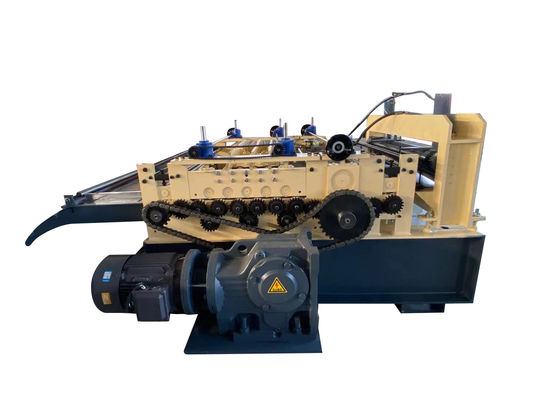

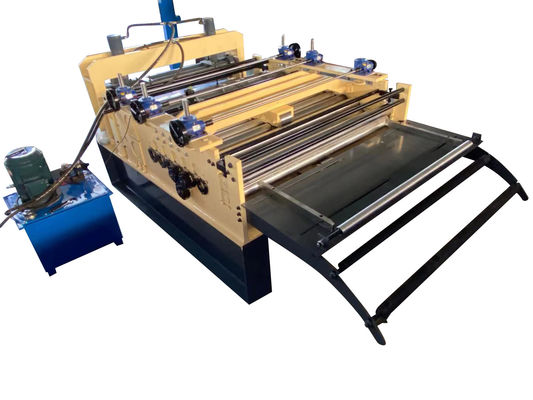

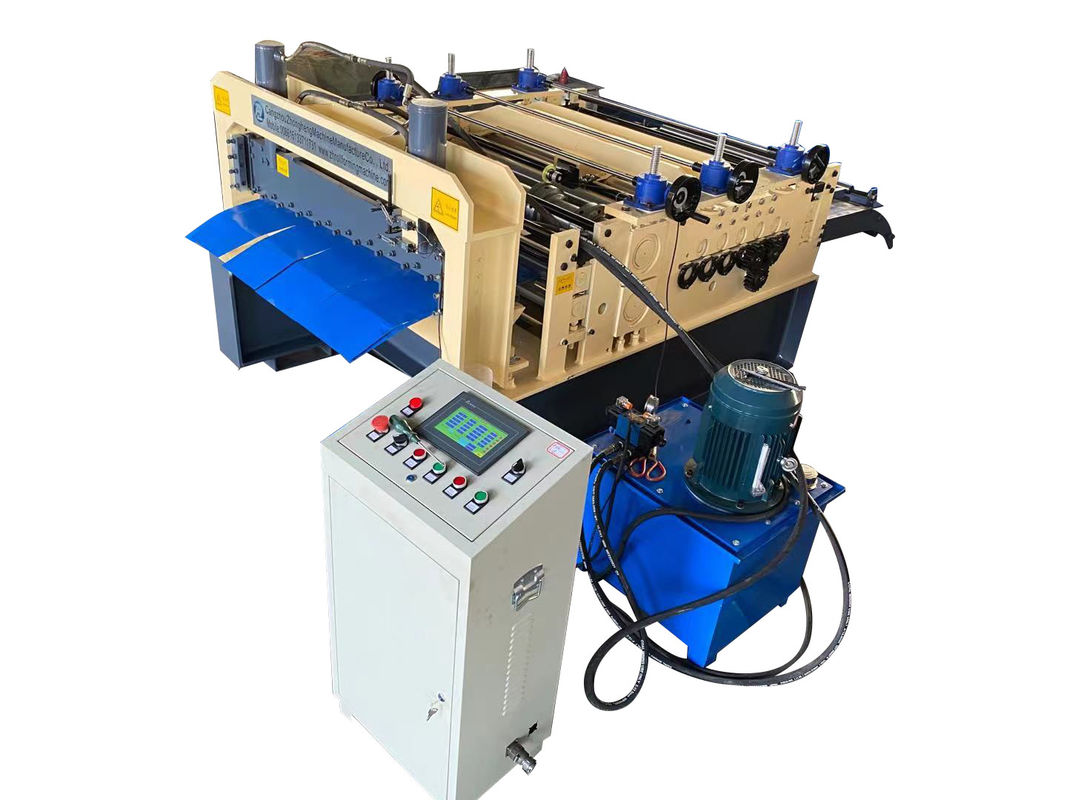

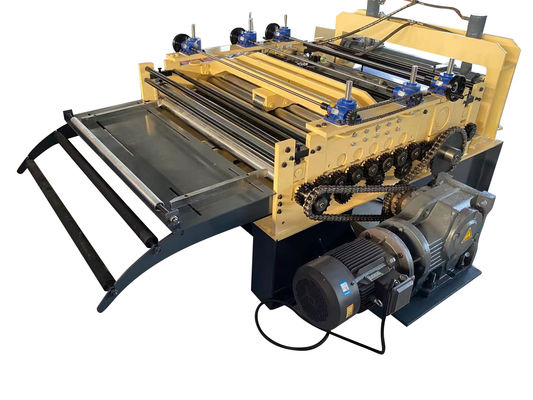

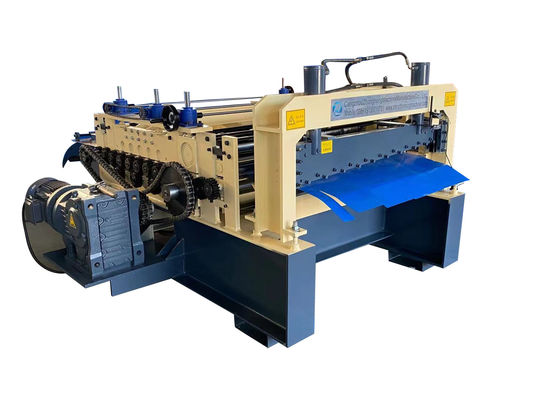

Machine pictures
Specifications
| Width of the panel: | 1250mm |
| The diameter of the shaft: | 95mm with hard chroming treatment ,cnc processing and milling |
| Shaft material | 40Cr |
| Thickness of raw material: | 2mm |
| Thickness of the middle panel: | 40mm |
| Control system: | PLC control |
|
Roller shaft:
|
Upper 6 rows Bottom 7 rows |
| Main machine structure | 500 H steel with 16mm thickness plate CNC milling |
| Slitting shaft diameter | 150mm |
| Line speed: | 0-30m/min |
| Main power | 11kw |
| Cutter | Cut to length motor control |
| Accurate | +-1mm |
| Material of blade | Cr12mov with hard heat treatment 55-62 degree |
| Bearing | High speed motor bearing |
| Transmit | Gear |
| Hydraulic power | 5.5KW |
| Color | White and gray |
Loading picture
