| Place of Origin: | Hebei , China |
| Brand Name: | ZH |
| Certification: | CE |
| Model Number: | ZH-1500 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD110000-150000per set |
| Packaging Details: | One set machine needs one 40GP for shipment , PLC system packed with Carton box . |
| Delivery Time: | 80 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 sets per month |
| Type: | High Speed Coil Steel Slitter Machine Slitting Rewinder Line | Special: | Fast Speed |
|---|---|---|---|
| Power: | 220KW | Volgate: | 380V Or Custom |
| Roller: | No.45 Steel With Heat Treatment | Warranty: | 1 Year Free |
| Strips: | 21 | Coil Width: | 1500mm |
| High Light: | coil slitting machine,cut to length line |
||
Brief introduction
Slitting line can help to improve efficiency, lower cost and ensure quality. DB has won wide market with its high performance and low price. The thickness of material can be from 0.3MM to 10MM, width from 500MM to 1600MM, quantity from 5 to 30 pieces, highest precision ±0.05MM and speed 180M/min. This line is applicable for processing of copper, aluminum, cold-reduced material, hot rolled material, silicon steel, and stainless steel and so on.
Technical Parameters
|
Steel coil parameters |
Material | CRS GI |
| Tensile strength | b≤380Mpa,S≤260Mpa | |
| Steel thickness | 0.5-4mm | |
| Steel width | 400-1600(Max) | |
| Steel coil I.D | 500mm | |
| Steel coil O.D | 1600mm(Max) | |
| Steel coil weight | 20T(Max) | |
|
Slitter parameters |
knife pivot diameter | 200 mm |
| Knife pivot material | 40Cr | |
| Blades specification | 200mmX340mmX10mm | |
| Blade material | 6CrW2Si | |
| Slit parameter | Max slit quantity | 8 pcs (3mm) 30 pcs(0.4mm) |
| Width precision | ≤±0.05mm | |
|
Other parameters |
Power | 380V/50Hz/3Ph |
| Line speed | 0-150m/min | |
| Capacity | 210 Kw | |
| Whole line Dimension | 24m(L)X8m(W) | |
| Operator needed | 1 mechanical engineer ,2 common workers | |
| Line direction | From right to left(Face to machine) | |
| Machine color | Can be customized |
Machine composition
1. Loading car
2. Hydraulic decoiler with support
3. Pinch roller and shearer
4. Lloop pit
5. Side guider, slitter
6. Scraper
7. Lloop pit
8. tension station
9. Recoiler and support
10. Unloading car
11. Electric system
13. Accessories
12. hydraulic system
5. Payment
| Payment |
There are 3 plans for you.you can choose the best plan. |
| Delivery time |
1.With 45 working days after received deposit ,we will finish the machine. |

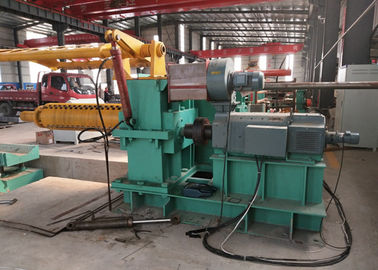

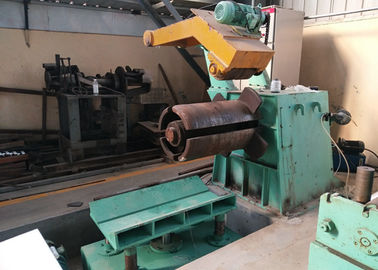

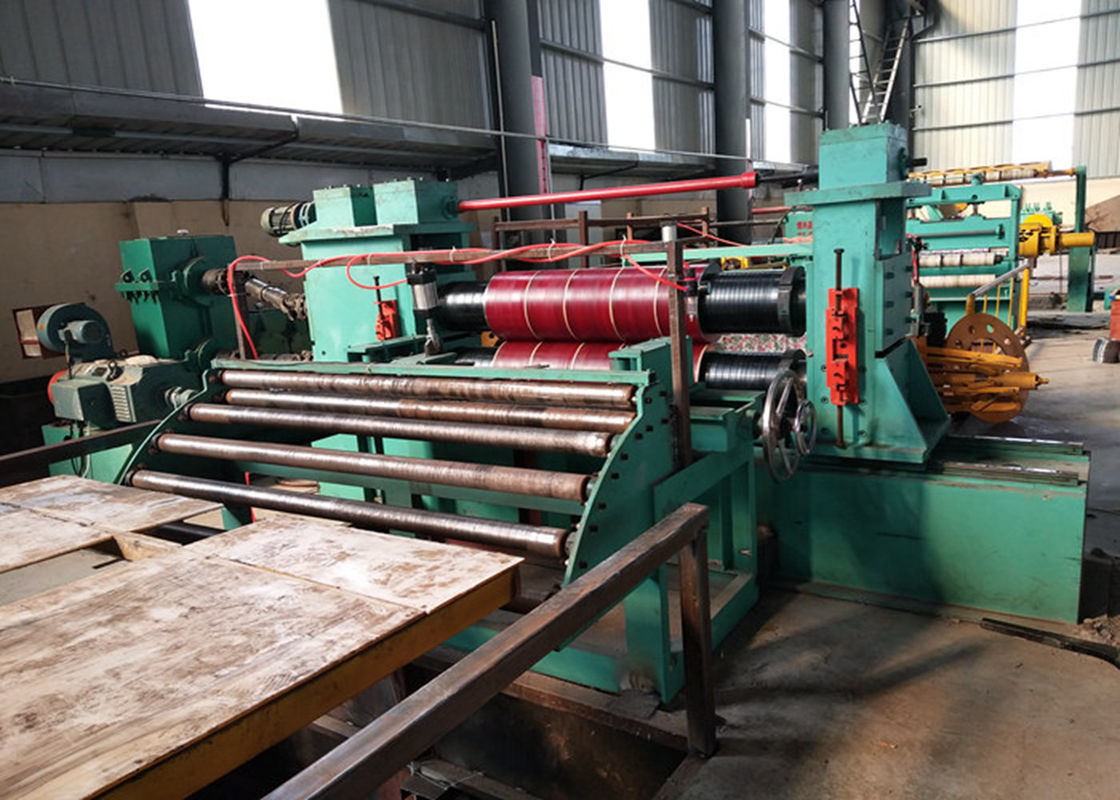

6. Machine picture
