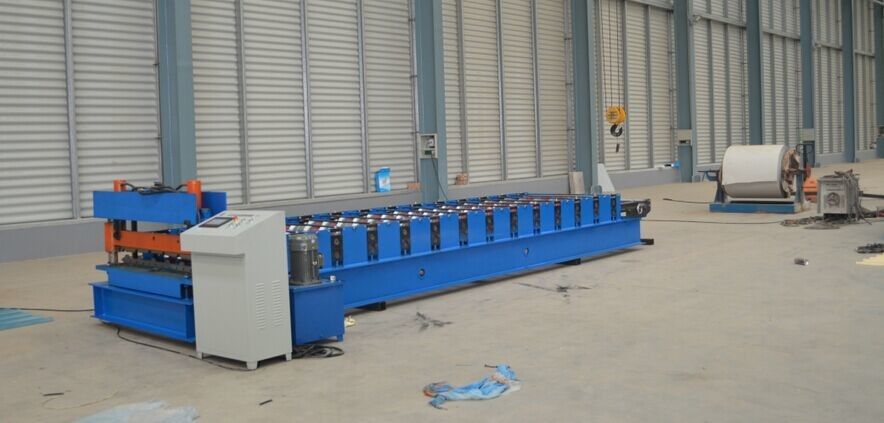

Roofing Sheet Making Machine Color Coated Corrugated Roof Roll Forming Machine

Roofing Sheet Making Machine Color Coated Corrugated Roof Roll Forming Machine

Roofing Sheet Making Machine Color Coated Corrugated Roof Roll Forming Machine

Product Details:

Place of Origin: China
Brand Name: ZHONGHENG
Certification: CE/SGS/ISO9001
Model Number: ZH 25-210-1050

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD8000-15000/set
Packaging Details: Waterproof plastic film cover
Delivery Time: 25working days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 300 sets/months
Contact Now
Detailed Product Description
Suitable Material: PPGI,PPGL,GL Thickness Of Material: 0.3mm-0.8mm
Type: Roll Forming Machine Use: Roof
Production Capacity: 15m/min(Adjustable) Power: 4kw
Weight: 4Ton Warranty: 24 Months
Color: As Cutomer Requested
High Light:

metal roofing roll forming machine

,

roof panel roll forming machine



 Roofing Sheet Making Machine Color Coated Corrugated Roof Roll Forming Machine



Roofing Sheet Making Machine Color Coated Corrugated Roof Roll Forming MachineRoofing Sheet Making Machine Color Coated Corrugated Roof Roll Forming Machine

Description:



IBR roofing is the most popular model of roofing,its widely used in roofing and wall of the workshop.

There is two cylindas on the cutting head of this machine,the hydraulic oil is running into the cylinda,control the cutter easily.



NO.

ITEM

PARAMETER

NOTE

1.







Suitable

material



Type

Pre-painted sheet,

Galvanized sheet



Width(mm)

1000mm



Thickness(mm)

0.3-0.8mm



Yield stress(mm)

G220-G300



2.

Product

specifications

Detail as the attached file

Length

Any length



3.

Power

requirement



Type

380v/3ph/50hz

Motor brand shanghai Lichao

Main Motor power

4kw

Cutter power

4kw

4.

Forming speed(m/min)

10-15m/min

Not include the time of cutting

5.

Manual Decoiler



(Optional)

Type

Manual



Max capacity

5t



Suitable coil OD(MM)

1000



Suitable coil

ID(MM)

508



6.

Forming stand

13

Depend on actual design

7.

Thickness of structure

16mm



8.

Forming shaft diameter(mm)

70 solid



9.

Type of cutting

Roll formed and

length-set cutting



10.

Control system

Panasonic PLC and inverter



11.

Install dimension(depend on the final design)

6.2m×1.5m×1m

Without panel length

12.

Total weight (Approx)

3.5T

Depend on final design



Applications:



Roof panel are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets,

shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and

different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers'

requests.



Competitive Advantage:

1. save space

2. easy installation

3. perfect service

4. excellent quality

5. Operate easily
