| Place of Origin: | China |
| Brand Name: | ZH |
| Certification: | CE/SGS/ISO9001 |
| Model Number: | ZH1050 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD10000-15000/set |
| Packaging Details: | 1.Main Roofing Sheet Roll Forming Machine and un-coiler is naked(If you need we can also packed with plastic film) 2. PLC control system is packed with carton box 3.Machine need one 20/40GP to ship |
| Delivery Time: | 25working days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 20sets/months |
| Name: | Advanced Roofing Sheet Roll Forming Machine | Thickness: | 0.3mm-0.8mm |
|---|---|---|---|
| Type: | Cold Roll Forming Machine | Use: | Roof And Wall |
| Production Capacity: | 15m/min(Adjustable) | Tile Type: | Steel |
| Voltage: | 380V 50Hz 3phases | Condition: | New |
| Weight: | 3.5T | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support |
| High Light: | metal roofing roll forming machine,roll forming equipment |
||

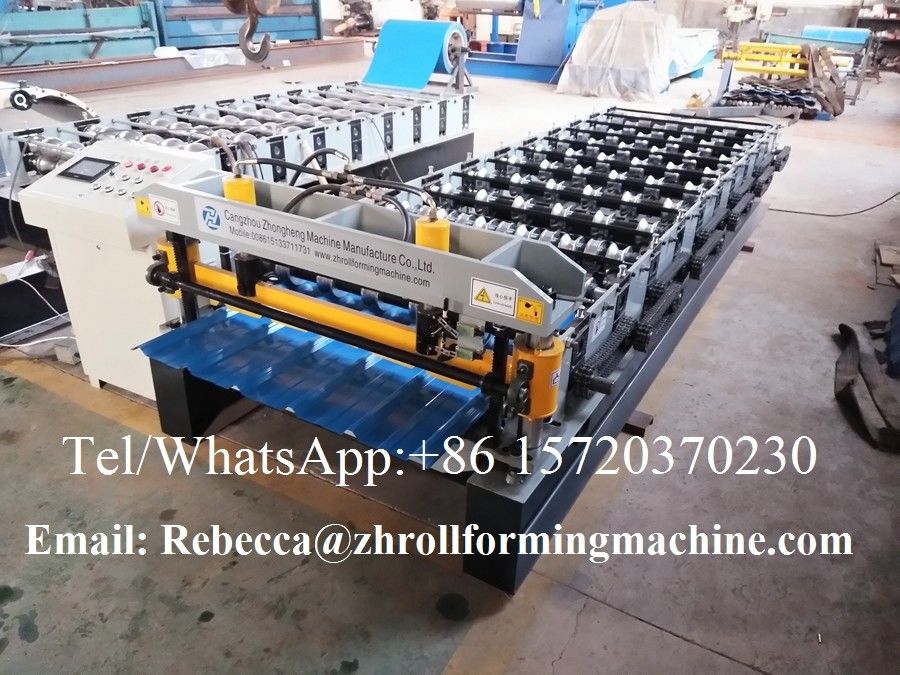

Advanced Roofing Sheet Roll Forming Machine With Double Chains Drive 0.3mm - 0.8mm
The Product Description of Roofing Sheet Roll Forming Machine
(1). Brief Introduction
The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,
ancient architectures and modern villas.
2). Working Flow of Roofing Sheet Roll Forming Machine
Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter
(3).Technical Detail
A Sheet Specifications
| 1 | Coil Type | Haixing Metal roofing panel roll forming machine |
| 2 | Width | 1250mm |
| 3 | Thickness | 0.3-0.8mm |
| 4 | Yield stress | Q235 |
| 5 | Effective | 1000mm |
B Components Details
| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate |
16mm. We use thicker plates to ensure stability of our products. |
| Forming Steps | 20 according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. |
|
Treating process: tempering- finish turning, high rigidity, hard to deform. |
|
|
Cutting Blade Material |
Cr12, hardness HRC60-62. |
| Treating process: heat treatment- plane abrasion- wire electrode cutting. |
C. Electric Components
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate. |
| PLC | Delta DVP 14ES |
|
well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
|
| Frequency Converter |
Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
|
Length Measurement Device |
Omron, made in Japan. |
| It features with high accuracy and stability. |
3. More Pictures of Roofing Sheet Roll Forming Machine
