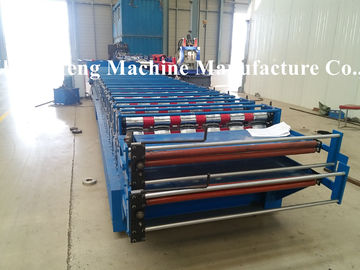

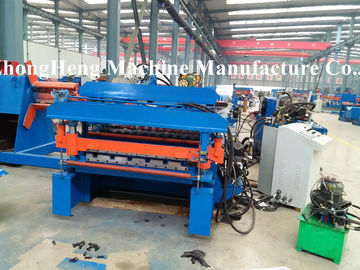

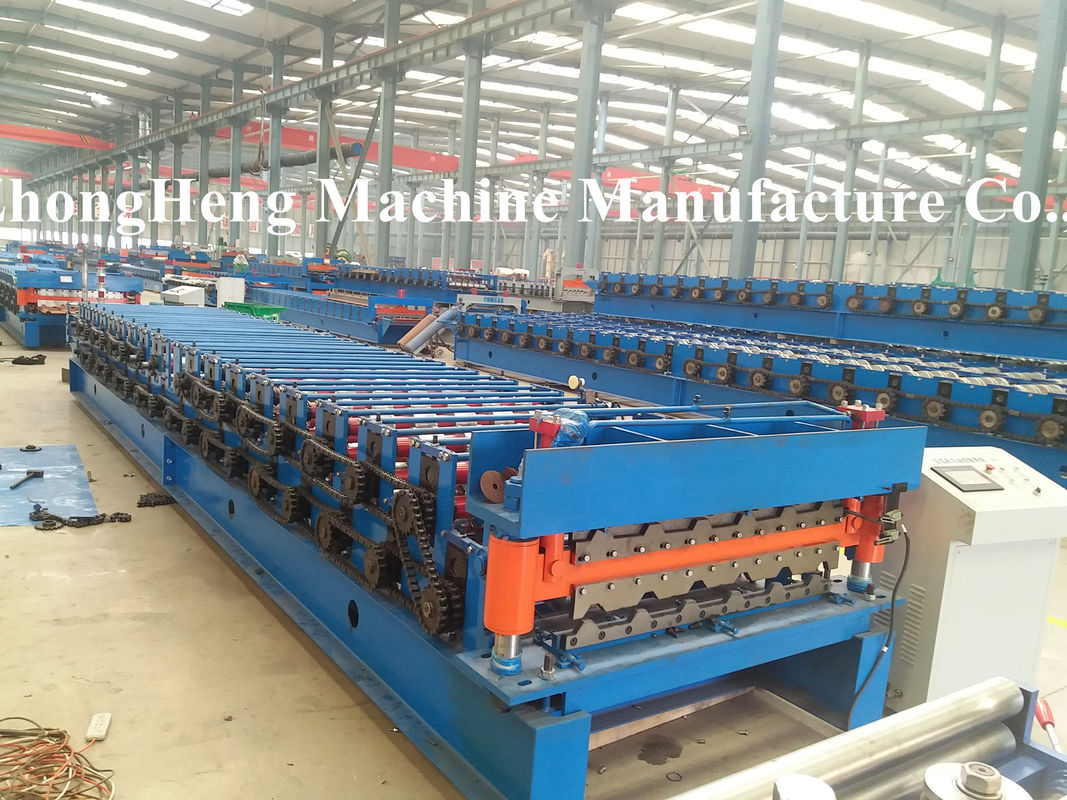

Double layer sandwich panel roofing sheet forming machine with CNC control system

Double layer sandwich panel roofing sheet forming machine with CNC control system

    • Double layer sandwich panel roofing sheet forming machine with CNC control system
    • Double layer sandwich panel roofing sheet forming machine with CNC control system
    • Double layer sandwich panel roofing sheet forming machine with CNC control system
    • Double layer sandwich panel roofing sheet forming machine with CNC control system
  • Double layer sandwich panel roofing sheet forming machine with CNC control system

    Product Details:

    Place of Origin: China
    Brand Name: ZHONGHENG
    Certification: CE/SGS/ISO9001
    Model Number: ZH18/26

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD16000-28000/set
    Packaging Details: Waterproof plastic film cover
    Delivery Time: 25working days
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 300 sets/months
    Contact Now
    Detailed Product Description
    Weight: 45000kg Original Place: China
    Voltage: 380V 50HZ 3 Phases Destination Country: Columbia
    PLC: Panasonic Screen: Delta
    High Light:

    metal roofing roll forming machine

    ,

    roll forming equipment

    Double layer sandwich panel roofing sheet forming machine with CNC control system




    Specification

    No.

              Double layer sandwich panel roofing sheet forming machine with CNC control system

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    1200mm

    3

    Rollers

    Up layer:14rows

    Down layer:14rows

    4

    Dimensions

    7800*1550*1410mm

    5

    Power

    5.5+4kw

    6

    Thickness of the plate

    0.3-0.8mm

    7

    Productivity

    10-15m/min

    8

    Material of the cutting blade

    Cr12

    9

    Diameter of the roller

    Φ75mm

    10

    Weight

    About 8.5T

    11

    Voltage

    380V 50Hz 3phases

    15

    Control system

    PLC control



    Flow chart
    Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting

    Products receiving
    Double layer sandwich panel roofing sheet forming machine with CNC control system
    MachineComponents

    No

    Name

    Quantity

    Remarks

    1

    Decoiler

    1set

    Up to customer

    2

    Main machine

    Pre-cutting device

    1set

    Up to customer

    Feeding device

    1set



    Roll forming system

    1set



    Post cutting device

    1set



    Hydraulic system

    1set



    3

    Electric control system

    1set



    4

    Supporter/Automatic Stacker

       1set


    Competitive Advantage:
    1. Full Automatic
    2. With previous cutting
    3. Save money
    4. excellent quality
    5. Operate easily
    Double layer sandwich panel roofing sheet forming machine with CNC control systemDouble layer sandwich panel roofing sheet forming machine with CNC control system
