| Place of Origin: | China |
| Brand Name: | ZHONGHENG |
| Certification: | CE/SGS/ISO9001 |
| Model Number: | ZH corrugated and trapezoidal |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD12000-28000/set |
| Packaging Details: | Waterproof plastic film cover |
| Delivery Time: | 25working days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 300 sets/months |
| Weight: | 65000kg | Material: | PPGI |
|---|---|---|---|
| Type: | Tile Forming Machine | Speed: | 10-15m/min |
| Middle Plate: | 18mm | Control System: | PLC Control |
| High Light: | roof panel roll forming machine,roll forming equipment |
||

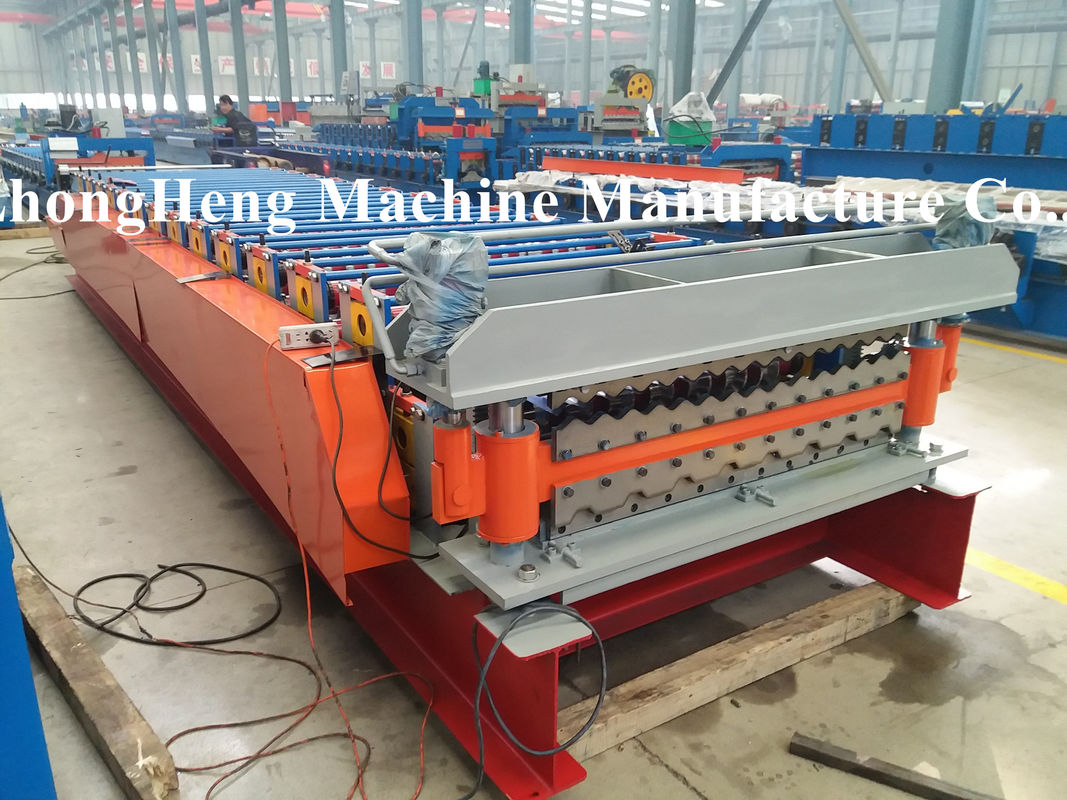

Most Popular Hydraulic Roofing Sheet Roll Forming Machine for construction material use
Specification
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000mm |
|
3 |
Rollers |
11/13rows |
|
4 |
size |
5800*1450*1510mm |
|
5 |
Main moter power |
3kw |
|
6 |
Hydraulic unit power |
3kw |
|
7 |
Thickness of the plate |
0.3-0.6mm |
|
8 |
Productivity |
15-20m/min |
|
9 |
Diameter of the roller |
Φ70mm |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Rolling material |
Forging Steel 45# |
|
12 |
Material of the cutting plate |
Cr12 |
|
13 |
Hydraulic |
40# |
|
14 |
Processing precision |
Within 1.00mm |
|
15 |
system |
PLC vector control |
Technical Specification
|
No |
|
Technical Specification |
|
1 |
Manual Uncoiler |
Usage:It is used to support the steel coil and uncoil it in a turnable way The steel coil is uncoiled by hand. Loading capacity:5T, Inner diameter: 500-508mm |
|
2 |
Feeding Table |
Put the raw material(steel plate) through the beach to manufacture and process It can guarantee that the products are neat Parallel and everything is uniformity Please refer to the equipment regulation to know the function of locate angle iron. |
|
3 |
Main Roll Forming Machine |
Material of rollers:45# steel,roller surfaces polishing, hard plating The polished surface and the heat treatment towards the molds also can keep the molding Plate surface smooth and not easy to be marked when it is being stamped |
|
4 |
Hydraulic System Computer Control Cabinet |
Power:4kw,Hydraulic oil: 40# Hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. The target piece`s length is adjustable and digit of it can be adjusted Computed mode has two modes: automatic and manual one The system is easy to operate and use PLC:EURA |
|
5 |
Shearing Mechanism |
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment |
|
6 |
Output Table |
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products |
Description
Our production line includes uncoiler, sheet guiding unit, roll forming system, cutting device, hydraulic station, PLC control system and run out table for product.
Terms of supply
1.Supplyability:3,000 meter per day
2.Productiontime: 15-20 days
3.Paymentterms:T/T, L/C;
4.Modes ofTransportation :By sea or train.
5.Terms ofdelivery:FOB,CIF,etc.
Why choose us?
1. We can provide the trade assurance service, it means that your order quality and on-time shipment is guaranteed by .com.
2. Professional sales team. Good english capabilities and communication skills.
Geographical advantages: within 2 hours to sea port, and very near to the Hangzhou airport and the train station.
3. Products are supplied to over 50 countries.
4. Professional design team, mold maker engineer. OEM/ODM service.
5. Professional QC and R&D teams to assure high quality.
