| Place of Origin: | China |
| Brand Name: | ZHONGHENG |
| Certification: | CE/SGS/ISO9001 |
| Model Number: | ZH28-200-1000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD14000-15000/set |
| Packaging Details: | Waterproof plastic film cover |
| Delivery Time: | 25working days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 300 sets/months |
| Suitable Material: | PPGI/ GI | Feeding Width: | 1220mm |
|---|---|---|---|
| PLC Brand: | Delta | Power: | 5.5kw |
| Color: | As Cutomer Requested | Hot Market: | India |
| Voltage: | 380V 50Hz 3phases | Warranty: | 2 Years |
| High Light: | metal roofing roll forming machine,roof panel roll forming machine |
||
Roof making machine roofing sheet roll forming machine with crimping machine for 0.3mm thickness steel
Competitive Advantage:
1. save space
2. easy installation
3. perfect service
4. excellent quality
5. Good Aftersale service
Specifications
|
NO. |
ITEM |
PARAMETER |
NOTE |
|
|
1.
|
Suitable material
|
Type |
Aluminum |
|
|
Width(mm) |
1220mm |
|
||
|
Thickness(mm) |
0.2-0.8mm |
|
||
|
Yield stress(mm) |
G220-G300 |
|
||
|
2. |
Product specifications |
Detail as the attached file |
||
|
Length |
Any length |
|
||
|
3. |
Power requirement
|
Type |
380v/3ph/50hz |
Motor brand shanghai Lichao |
|
Main Motor power |
5.5kw |
|||
|
Cutter power |
4kw |
|||
|
4. |
Forming speed(m/min) |
10-15m/min |
Not include the time of cutting |
|
|
5. |
Manual Decoiler
(Optional) |
Type |
Manual |
|
|
Max capacity |
5t |
|
||
|
Suitable coil OD(MM) |
1000 |
|
||
|
Suitable coil ID(MM) |
508 |
|
||
|
6. |
Forming stand |
18 |
Depend on actual design |
|
|
7. |
Thickness of structure |
16mm |
|
|
|
8. |
Forming shaft diameter(mm) |
75solid |
|
|
|
9. |
Type of cutting |
Roll formed and length-set cutting |
|
|
|
10. |
Control system |
Panasonic PLC and inverter |
|
|
|
11. |
Install dimension(depend on the final design) |
9.2m×1.5m×1m |
Without panel length |
|
|
12. |
Total weight (Approx) |
5.5T |
Depend on final design |
|
Applications:
1)We can promise the tolerance to be 0.8mm due to 18 sets CNC machines on site. All the rollers and shafts are solid.
2)We have a engineer team with more than 10 years experience to offer the most popular solutions.
3)22 installation engineers can go to your site within 7 days.
4)12 months maintenance and whole life technical support.
5)We cooperate with Maersk,APL,CMA,EMC,MSC, and PIL etc, 32 big shipping companies.
Basic service
1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc

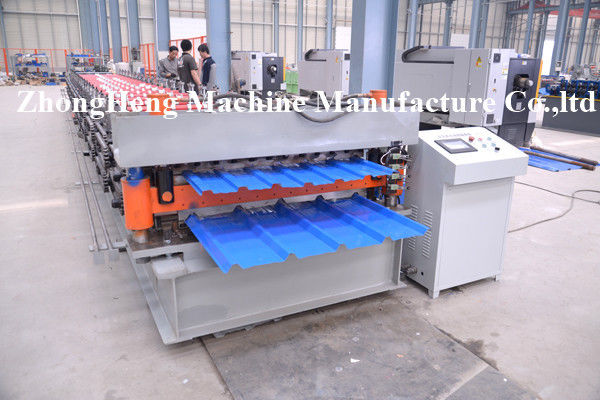

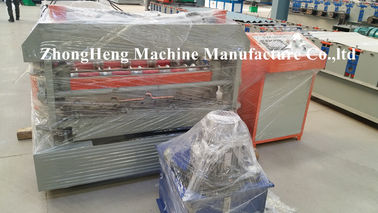

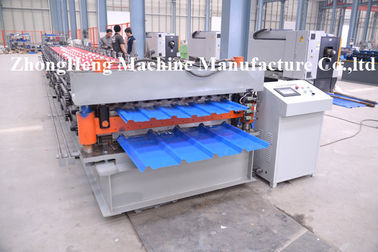

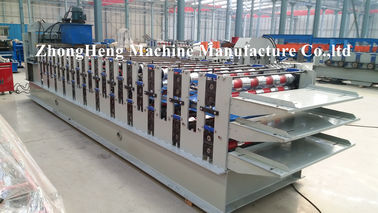

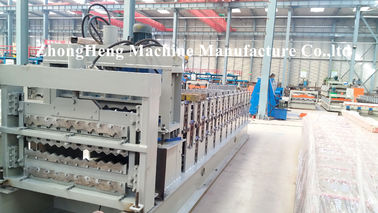

Machine picture
