| Place of Origin: | Hebei , China |
| Brand Name: | ZH |
| Certification: | CE |
| Model Number: | ZH-1500 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD110000-150000per set |
| Packaging Details: | One set machine needs one 40GP for shipment , PLC system packed with Carton box . |
| Delivery Time: | 80 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 sets per month |
| Type: | SS Vermicelli Production Line Available Customzied Dimension | Feature: | Advanced Design |
|---|---|---|---|
| Special: | Fast Speed | Power: | 220KW |
| Volgate: | 380V Or Custom | Roller: | No.45 Steel With Heat Treatment |
| Warranty: | 1 Year Free | Service: | Whole Life |
| Strips: | 21 | Coil Width: | 1500mm |
| High Light: | steel coil slitting machine,coil slitting machine |
||
SS Vermicelli Production Line Available Customzied Dimension
1. Machine picture
2.Advantage
We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.0.3-3mm 3mm galvanized steel coil slitting and recoiling line

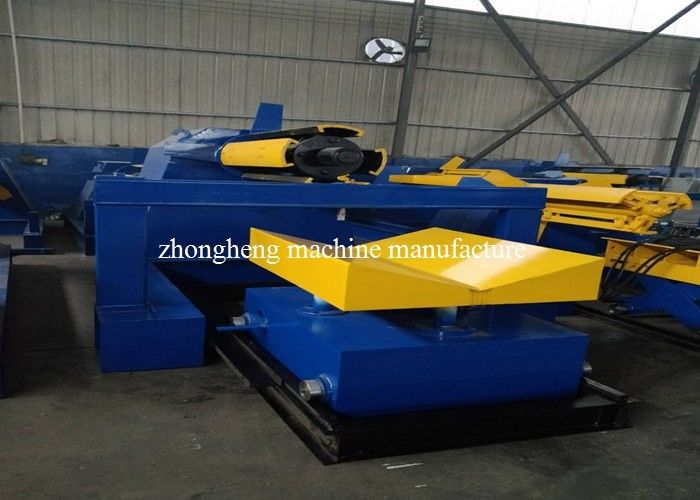

15T Hydraulic UncoilerFunction: Supporting coil and fix it , start motor to lead plate into leveling machine Motor AC 7.5 KW Mandrel diameter:φ508mm Manipulator: Hydraulic pressure drive. Braking: Pneumatic brake Capacity:15T |
|
|
Levelling and cutting device Leveling machine has 5 roller up and 6 rollers down Motor AC 7.5KW Crop shear: Drive by oil hydraulic cylinder, cut off the crude steel plat head for following processing. |
|
Main Slitting Machine Adopts Japanese Circle cutter, can shear different Size strips . Main axis material 40CR, diameter Φ240mm Blade material: Cr12Mov Motor :18-22 KW Strips size adjustable |
|
|
separated steel strip, which form a certain tension before send to the recoiler, to complete winding operation |
|
collect the steel strip after slitting closely Motor: 22KW |
|
4. Detailed picture
5.Our Service
|
|
Pre-Sales Service* Inquiry and consulting support. |
After-Sales Service* Training how to instal the machine, training how to operate the machine. |
6.Packing & Delivery
| Size: 15000 (L) * 1850 (W) * 1510 (H) Weight: 20T 1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' container to shipping. |
6.Free to Contact us
