51mm Deep Floor Deck Roll Forming Machine 8-12m / Min With Embossing Device

    • 51mm Deep Floor Deck Roll Forming Machine 8-12m / Min With Embossing Device
    • 51mm Deep Floor Deck Roll Forming Machine 8-12m / Min With Embossing Device
    • 51mm Deep Floor Deck Roll Forming Machine 8-12m / Min With Embossing Device
    • 51mm Deep Floor Deck Roll Forming Machine 8-12m / Min With Embossing Device
  • 51mm Deep Floor Deck Roll Forming Machine 8-12m / Min With Embossing Device

    Product Details:

    Place of Origin: China
    Brand Name: ZHONGHENG
    Certification: SGS CE ISO9001
    Model Number: ZH 960

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 sets
    Price: USD37000-42000/set
    Packaging Details: Packed in plastic film cover.
    Delivery Time: 50 working days
    Supply Ability: 100 sets/months
    Contact Now
    Detailed Product Description
    Type: Color Coated Meta LIron Steel Corrugated Arch Roofing Panel Roll Forming Machine Thickness: 1.2mm-1.6mm
    Chains: 1.5 Inch Capacity: 8-12m/min
    Waranty: 2 Years Afersale Service: Engineer Available
    Forming Stations: 26 Motor: 15kw+15kw

                             51mm deep deck profile roll forming machine with new embossing device


    Description


    This model of deck floor roll forming machine is popular model in India market.

    Feeding width is 1220mm ,thickness is 1.2mm ,G550 Steel .

    Its one of our professional machine ,besides deck floor roll forming machine we are specialize in Roof sheet roll forming machine ,C/Z purlin forming machine ,Stud and track roll forming machine ,Slitting Line ,and so on.


    Advantages of Floor decking forming machine are as follows:
    1.Floor decking sheet produced by this machine has the features of low cost , light weight buy high strength , shourt building period and re-cycle use .
    2.Save material with no waste
    3.Easy operation , low maintenance cost
    4.One machine for 3 models for optional (by changing spacers)
    Specifications

    NO.

    ITEM

    PARAMETER

    NOTE

    1.




    Suitable
    material


    Type

    Galvanized sheet







    Width(mm)

    1200mm







    Thickness(mm)

    0.6-1.5mm







    Yield stress(mm)

    G220-G300



    2.

    Product
    specifications

    Detail as the attached file





    Length

    Any length



    3.

    Power
    requirement


    Type

    220v/380v/3ph/50hz







    Main Motor power

    15kw+15KW







    Cutter power

    5.5kw



    4.

    Forming speed(m/min)

    8-15

    Not include the time of cutting

    5.

    Manual Decoiler

    (Optional)

    Type

    Manual







    Max capacity

    5t







    Suitable coil OD(MM)

    1200







    Suitable coil
    ID(MM)

    508



    6.

    Forming stand

    30

    Depend on actual design

    7.

    Thickness of structure

    20mm A3 steel plate



    8.

    Forming shaft diameter(mm)

    85 #45 steel



    9.

    Type of cutting

    Roll formed
    and length-set cutting



    10.

    Control system

    PLC and inverter

    Panasonic brand

    11.

    Install dimension(depend on the final design)

    15.2m×1.5m×1.55m

    Without panel length

    12.

    Total weight (Approx)

    10T

    Depend on final design


    Componse of the machines


    1) Manual De-coiler ------------------------------------------------------ 1 set
    2) Roll Forming System--------------------------------------------------- 1set
    3) Cutting Device---------------------------------------------------------- 1set
    4) Hydraulic System------------------------------------------------------- 1 set
    5) PLC Control System----------------------------------------------------1 set
    6) Run out table ----------------------------------------------------------- 1 set
    Trade Terms and After sale service
    1.Payment Term:30% paid by T/T as down payment,Balance 70% after inspection before delivery. After finish production, we will inspect the machine and inform the buyer, the buyer come inspect goods, then pay the balance before shipping.
    2.Delivery Time:We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .
    3.After sale Service:We could send technician to your country to install machine if you need. The buyer need to pay all the cost, including:visa, round trip tickets, accommodation, salary of USD 100~120 per day.
    4.Warranty:12 months
    During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping .We will also provide you instruction manual to show you how to operate the machines

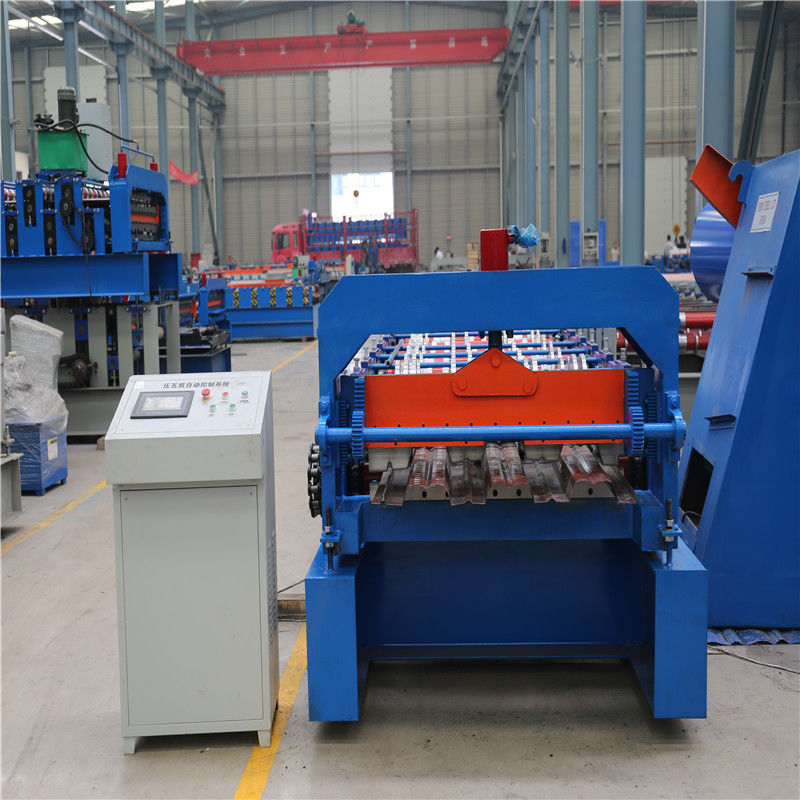

    Machine pictures

    51mm Deep Floor Deck Roll Forming Machine 8-12m / Min With Embossing Device51mm Deep Floor Deck Roll Forming Machine 8-12m / Min With Embossing Device
