U Channel Stud And Track Roll Forming Machine With Manual Decoiler / Runout Table

U Channel Stud And Track Roll Forming Machine With Manual Decoiler / Runout Table

    • U Channel Stud And Track Roll Forming Machine With Manual Decoiler / Runout Table
    • U Channel Stud And Track Roll Forming Machine With Manual Decoiler / Runout Table
    • U Channel Stud And Track Roll Forming Machine With Manual Decoiler / Runout Table
    • U Channel Stud And Track Roll Forming Machine With Manual Decoiler / Runout Table
    • U Channel Stud And Track Roll Forming Machine With Manual Decoiler / Runout Table
  • U Channel Stud And Track Roll Forming Machine With Manual Decoiler / Runout Table

    Product Details:

    Place of Origin: Hebei , China
    Brand Name: ZH
    Certification: CE
    Model Number: ZH-45

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD8000-15000 per set
    Packaging Details: One set machine needs one 40GP for shipment , PLC system packed with Carton box .
    Delivery Time: 30 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Type: Top Quality Metal U Channel Roll Forming Machine With Manual Decoiler And Runout Table Feature: Advanced Design
    Special: Hydraulic Cutting Power: 5.5+4KW
    Volgate: 380V Or Custom Roller: No.45 Steel With Heat Treatment
    Warranty: 1 Year Free Service: Whole Life

    Top quality Metal U channel Roll Forming machine with manual decoiler and runout table


    Description

    Light steel keel forming machine with steel as a raw material, by continuous cold rolling molding to produce complex profiles section, type multiple, versatile. We can according to customer design, manufacture different specifications of cold-formed, paint unit equipment.
    Light steel keel molding machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material. Used in hotels, terminals, bus terminal, railway stations, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.

    Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.




                                                                2 Detailed picture

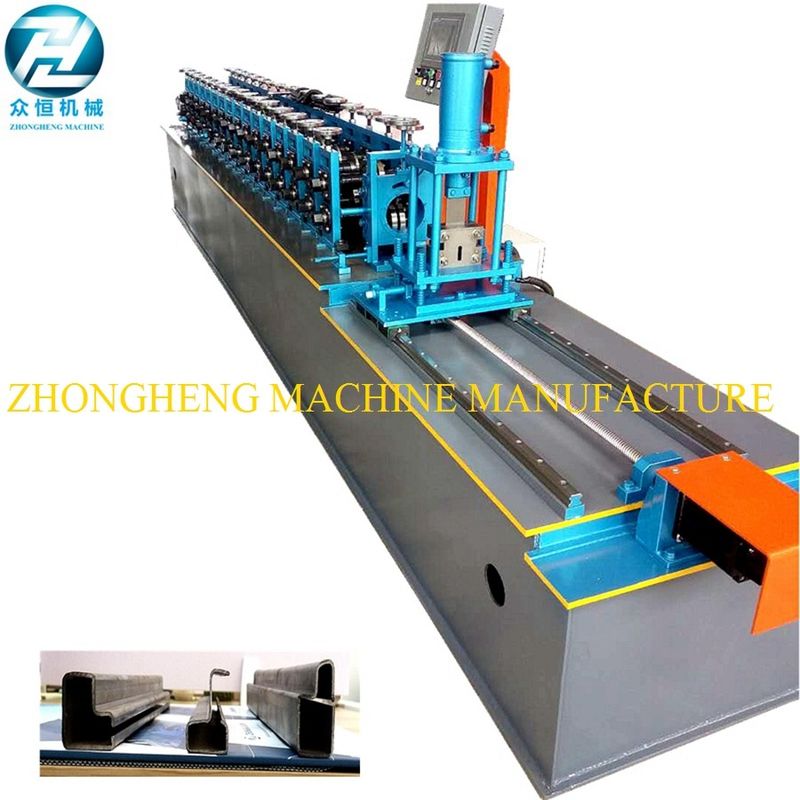

    U Channel Stud And Track Roll Forming Machine With Manual Decoiler / Runout Table
                                                     3. Components of machine

    No.NameQty
    1.De-coiler1 Set
    2.Roll Forming Machine1 Set
    3.Hydraulic Cutting Device1 Set
    4.PLC Control Box1 Set
    5.Hydraulic Pump1 Set
    6.Output table1 Set


    Decoiler

    TypeManual type(standard)Hydraulic type(option)
    Width300mm500mm
    CapacityMax 3tonsFrom 3-5 tons
    Inner diameterφ450-550mmφ450-550mm
    Outer diameterφ1500mmφ1800mm


    roll forming

    ItemParameter detail
    Processing MaterialGI and PPGI
    Material thickness0.4-0.8mm
    Machine frame360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
    Machine siding panel
    plate typePillar type(option)

    Plate thickness:20mmPillar thickness:30mm
    Painting:normal paintingpainting:Chroming
    Forming stations10-22 stations(according to the profiles)
    Machine rollershigh grade Cr12 steel,plated hard chroming with thickness 0.05mm
    Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
    Machine Shaftφ60-70mm high garde No.45 steel after treatment,
    Machine spacersCNC lathing in high-precision
    Machine bearingsChina Haerbin bearing or SKF international bearing(option)
    Driving systemGear or gear box(option)
    Machine power3kw-5.5kw(according to the profiles)
    Machine working speed8-12m/min or 10-30m/min(option)
    Machine adjust typeAfter machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm


    Cutting

    TypeMould cutting type
    Blade materialCr12mov quenching and grinding
    Frame processingthe whole bottom frame is grinding for high-precision
    Blade processingwire-electrode cutting, but the upper balde can not be straight. this is technology
    WorkingHydraulic type


    Stacker

    TypeManualAuto(option)

    Length1.5m-2m6m or 12m


    PLC

    Main itemParameter detail
    PLCDelta(standard) or according to your request
    InverterChina brand(standard) or according to your request
    Touch screenMcgs(standard) or according to your request
    EncoderChina brand(standard) or according to your request
    Voltage/HZ/Phase380v/50-60hz/3phase


    Hydraulic pump

    Main ItemParameter detail
    Motor3kw China brand or according to your request
    PumpChina brand or according to your request
    Solenoid valveChina brand or according to your request
    Cooling system

    Cooling fan




    Details


    Manual Un-coiler
    ◊ Max Capacity: 5000kgs
    ◊ Inner diameter of coil: 400-600mm
    ◊ Manual with brake
    Leveling Device
    ◊ Ensure the material level and straight
    ◊ The width can be adjusted
    Auto Main Forming System
    ◊ Max Feeding width:1220 mm
    ◊ Product width: 1000 & 1020 mm
    ◊ Thickness of sheet: 0.2-1.0mm
    ◊ Motor Power: 5.5 kw forming system
    ◊ Roller material: C45 steel
    ◊ Diameter of shaft: Upper level 95 mm
    ◊ Base Frame: 360 H steel welded..
    Hydraulic Cutting Device
    ◊ Cutting way: pause to cut.
    ◊ Oil pump station 1set.
    ◊ Hydraulic power: 4 kw hydraulic system.
    ◊ Blade Material: CR12 with heat treatment HRC60-62.
    Electrical System
    ◊ Control system: HMI & PLC control panel.
    ◊ Power: 440V 50Hz (as per local requirement)
    Run-out Table
    ◊ Frame: 8# steel groove welded
    ◊ Roller type.
    ◊ Quantity: 1 pc


    U Channel Stud And Track Roll Forming Machine With Manual Decoiler / Runout Table
     Machine pictures
    U Channel Stud And Track Roll Forming Machine With Manual Decoiler / Runout Table
