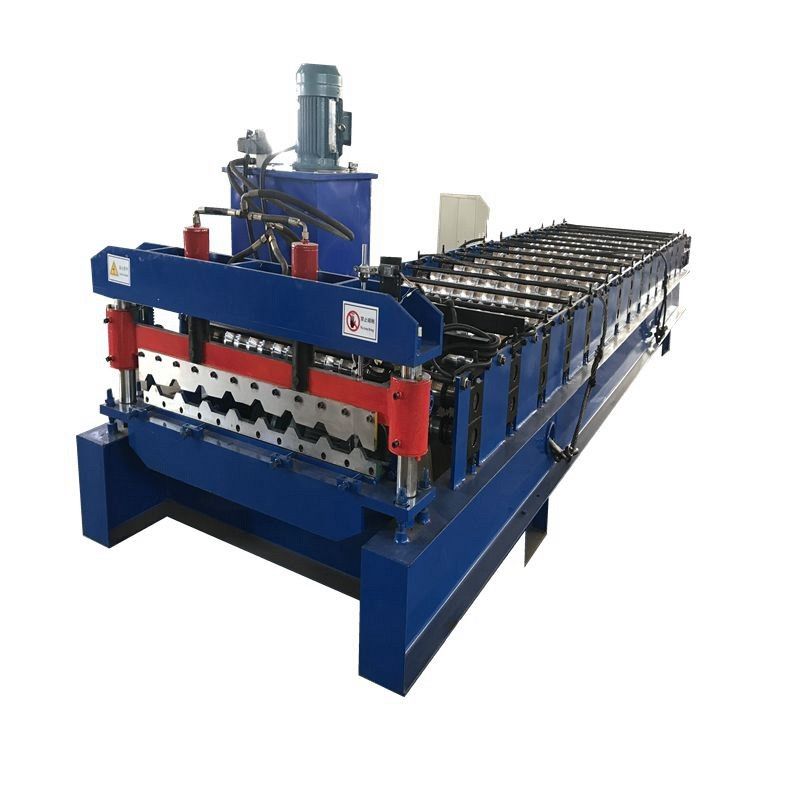

Color Steel Roofing Sheet Roll Forming Machine 988 Trapezoid 6.2 * 1.3 * 1.6m

Color Steel Roofing Sheet Roll Forming Machine 988 Trapezoid 6.2 * 1.3 * 1.6m

    • Color Steel Roofing Sheet Roll Forming Machine 988 Trapezoid 6.2 * 1.3 * 1.6m
    • Color Steel Roofing Sheet Roll Forming Machine 988 Trapezoid 6.2 * 1.3 * 1.6m
    • Color Steel Roofing Sheet Roll Forming Machine 988 Trapezoid 6.2 * 1.3 * 1.6m
    • Color Steel Roofing Sheet Roll Forming Machine 988 Trapezoid 6.2 * 1.3 * 1.6m
  • Color Steel Roofing Sheet Roll Forming Machine 988 Trapezoid 6.2 * 1.3 * 1.6m

    Product Details:

    Place of Origin: China
    Brand Name: ZHONGHENG
    Certification: CE/SGS/ISO9001
    Model Number: ZHR101

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD12000-15000/set
    Packaging Details: Waterproof plastic film cover
    Delivery Time: 25working days
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 300 sets/months
    Contact Now
    Detailed Product Description
    Dimension(L*W*H):: 6.2*1.3*1.6 M Model Number: R101
    Weight: 45000kg Production Capacity: 10-15m /min
    Forming Stations: 16 Color: As Cutomer Requested
    Voltage: 220V 50Hz 3phases Coil Width: 1220mm
    Speed: 15meters/min


        Botou color steel roof sheet 988 trapezoid Roof Roll Forming Machine for Mexico market


    This model of machine is popular in Mexico market .And we had export many sets of machines to Mexico.


    1.Specifications

    Roller steps16
    Dimension7200*1600*1550mm
    Weight4.5t
    Feeding width325mm
    Forming thickness0.35-0.6mm
    Large frame400mm H-Beam
    Diameter of rollerΦ70mm
    Middle plate16-25mm
    Chain Size1 inch
    Voltage380V 50HZ 3 phases or customized
    Motor power44kw
    Pump station power3kw
    Transducer power5.5kw
    Cutting systemHydraulic cutting(avoiding noise and smooth cut)
    Material of cuttingCr12
    Control systemPLC brand :Panasonic
    Length error : ±2mm
    Production capacity10-15m/min
    Warranty 1 year and we provide technical support for whole life, and overseas service
    Maintain Easily :Timely adding oil
    Payment terms30%  in advance, the balance before delivery
    Package Standard package
    Delivery 35 days after receiving the deposit

    Color Steel Roofing Sheet Roll Forming Machine 988 Trapezoid 6.2 * 1.3 * 1.6m

    2.Components Details

     Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
     Main Frame 350# steel. More stable and no shaking.
     Middle Plate

     16mm. We use thicker plates to ensure stability
     of our products.

     Forming Steps 16, according to the drawing.
     Shaft Material Φ70 mm, high grade 45# steel.

     Treating process: tempering- finish turning,
     high rigidity, hard to deform.

     Cutting
     Blade Material

     Cr12, hardness HRC60-62.
     Treating process: heat treatment- plane abrasion-  wire electrode cutting.


    3.Electric Components

     Suitable Power 220 V, 50 Hz, 3 phase or according to your need.
     Screen 7 inch touch screen, easy to operate.
     PLC Delta DVP14ES

     Well-adapted to various conditions, such as moisture,
     electromagnetic  disturbance.

     Frequency Converter

     Delta VFD-M. It has the advantage of slowing down before cutting,
     to ensure the length  accuracy (±1mm,
     far better than industrial standard ±3mm).

     Length
     Measurement Device

     Omron, made in Japan.
     It features with high accuracy and stability.


    4.Flow chart
    Manual Decoiler—Roll Forming Machine—Computer Control System—Hydraulic Control System—Form Cutter
    Color Steel Roofing Sheet Roll Forming Machine 988 Trapezoid 6.2 * 1.3 * 1.6m
     5.Components of line

    1) Manual De-coiler ------------------------------------------------------ 1 set

    2) Guiding Device--------------------------------------------------------- 1 set

    3) Roll Forming System--------------------------------------------------- 1set

    4) Cutting Device---------------------------------------------------------- 1set

    5) Hydraulic System------------------------------------------------------- 1 set

    6) PLC Control System-----------------------------------------------------1 set

    7) Run out table ----------------------------------------------------------- 1 set

    6.Machine pictures

    Color Steel Roofing Sheet Roll Forming Machine 988 Trapezoid 6.2 * 1.3 * 1.6mColor Steel Roofing Sheet Roll Forming Machine 988 Trapezoid 6.2 * 1.3 * 1.6mColor Steel Roofing Sheet Roll Forming Machine 988 Trapezoid 6.2 * 1.3 * 1.6m

    7. Contact informationColor Steel Roofing Sheet Roll Forming Machine 988 Trapezoid 6.2 * 1.3 * 1.6m
