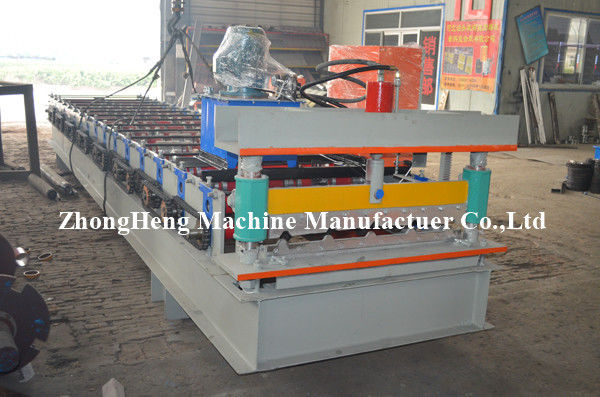

Customized Corrugated Roll Forming Roofing Machine For Wall Panel Maker 50Hz

Customized Corrugated Roll Forming Roofing Machine For Wall Panel Maker 50Hz

    • Customized Corrugated Roll Forming Roofing Machine For Wall Panel Maker 50Hz
    • Customized Corrugated Roll Forming Roofing Machine For Wall Panel Maker 50Hz
    • Customized Corrugated Roll Forming Roofing Machine For Wall Panel Maker 50Hz
    • Customized Corrugated Roll Forming Roofing Machine For Wall Panel Maker 50Hz
  • Customized Corrugated Roll Forming Roofing Machine For Wall Panel Maker 50Hz

    Product Details:

    Place of Origin: China
    Brand Name: ZHONGHENG
    Certification: CE/SGS/ISO9001
    Model Number: ZH29-200-1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD8000-15000/set
    Packaging Details: Waterproof plastic film cover
    Delivery Time: 25working days
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 300 sets/months
    Contact Now
    Detailed Product Description
    Suitable Material: PPGI,PPGL,GL Type: Roll Forming Machine
    Use: Roof Production Capacity: 15m/min(Adjustable)
    Power: 4kw Color: As Cutomer Requested
    Thickness: 0.3mm-0.8mm Voltage: 380V 50Hz 3phases
    Warranty: 2 Years





    Customized Corrugated Roll Forming Roofing Machine For Wall Panel Maker 50Hz



    Customized Corrugated Roll Forming Roofing Machine For Wall Panel Maker 50HzCustomized Corrugated Roll Forming Roofing Machine For Wall Panel Maker 50Hz



    Description:



    Trapezoidal roofing is the most popular model of roofing,its widely used in roofing and wall of the workshop. We exported to the Countries such as  Iraq ,india and Dubai.

    Specifications

    NO.

    ITEM

    PARAMETER

    NOTE

    1.







    Suitable

    material



    Type

    Pre-painted sheet,

    Galvanized sheet



    Width(mm)

    1200mm



    Thickness(mm)

    0.3-0.8mm



    Yield stress(mm)

    G220-G300



    2.

    Product

    specifications

    Detail as the attached file

    Length

    Any length



    3.

    Power

    requirement



    Type

    380v/3ph/50hz

    Motor brand shanghai Lichao

    Main Motor power

    4kw

    Cutter power

    4kw

    4.

    Forming speed(m/min)

    10-15m/min

    Not include the time of cutting

    5.

    Manual Decoiler



    (Optional)

    Type

    Manual



    Max capacity

    5t



    Suitable coil OD(MM)

    1000



    Suitable coil

    ID(MM)

    508



    6.

    Forming stand

    14

    Depend on actual design

    7.

    Thickness of structure

    16mm



    8.

    Forming shaft diameter(mm)

    70 solid



    9.

    Type of cutting

    Roll formed and

    length-set cutting



    10.

    Control system

    Panasonic PLC and inverter



    11.

    Install dimension(depend on the final design)

    7.2m×1.5m×1m

    Without panel length

    12.

    Total weight (Approx)

    3.5T

    Depend on final design



    Applications:



    Roof panel are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets,

    shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and

    different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers'

    requests.



    Competitive Advantage:

    1. save space

    2. easy installation

    3. perfect service

    4. excellent quality

    5. Operate easily
