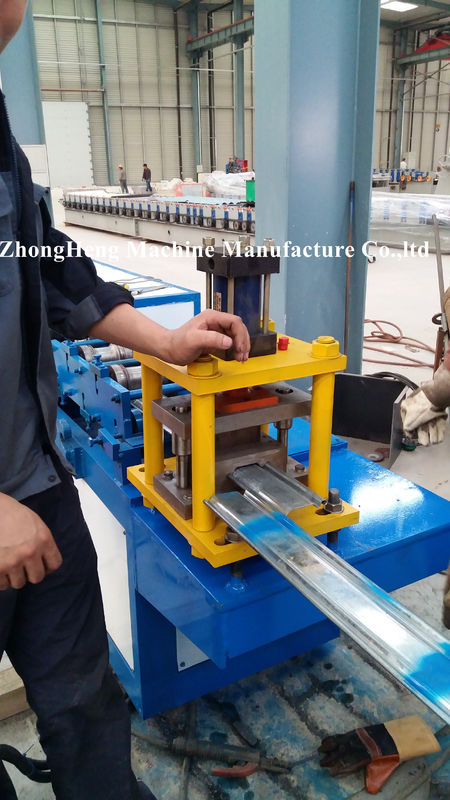

Aluminium Roller Shutter Door Roll Forming Machine 3 Tons 39mm / 42mm / 45mm

Aluminium Roller Shutter Door Roll Forming Machine 3 Tons 39mm / 42mm / 45mm

    • Aluminium Roller Shutter Door Roll Forming Machine 3 Tons 39mm / 42mm / 45mm
    • Aluminium Roller Shutter Door Roll Forming Machine 3 Tons 39mm / 42mm / 45mm
    • Aluminium Roller Shutter Door Roll Forming Machine 3 Tons 39mm / 42mm / 45mm
    • Aluminium Roller Shutter Door Roll Forming Machine 3 Tons 39mm / 42mm / 45mm
  • Aluminium Roller Shutter Door Roll Forming Machine 3 Tons 39mm / 42mm / 45mm

    Product Details:

    Place of Origin: China
    Brand Name: ZHONGHENG
    Certification: CE/SGS/ISO9001
    Model Number: ZH77PU

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD25000-28000/set
    Packaging Details: Packed in plastic film cover
    Delivery Time: 25 working days
    Supply Ability: 50 sets/months
    Contact Now
    Detailed Product Description
    Thickness Of Raw Material: 0.3mm-0.6mm Usage: Door
    Production Capacity: 8-10m/min Power(W):: 7.5kw+5.5kw+2.2kw
    Weight: 10 Tons After-sales Service Provided: Engineers Available
    Roller Stations: 32 Steps Or 38 Steps





    Aluminium Roller Shutter Door Roll Forming Machine 3 Tons 39mm / 42mm / 45mm





    Aluminium Roller Shutter Door Roll Forming Machine 3 Tons 39mm / 42mm / 45mm

    Applications:



    1. Appearance and delicate: is made of high qualified steel plate (aluminum) rolling forming, not filled with middle

    carbon fluorinated compounds of polyurethane foaming materials, heat insulation, sound insulation, heat

    preservation.



    2. Use fast: in the process of start, very swift and no noise, if use motor drive, power changed hands move way

    can be met.



    3. Durable: using high quality materials, sophisticated production technology and production technology, meet

    slight collision after can sprung automatically deformation.



    4. Save a space: the closed beta guide drive, promoting a door with other than to save the building, the internal

    space, installation is more convenient.



    Competitive Advantage:

    1. save space

    2. easy installation

    3. perfect service

    4. excellent quality

    5. Operate easily

    Specification



    Uncoil

    3 tons manual decoiler

    Raw material thickness

    0.3-0.6mm

    Feeding width

    39mm/42mm/45mm/55mm/77mm/99mm

    Forming station

    32-38stations

    Shaft diameter

    60 mm

    Shaft material

    high grade 45# steel

    Roller material

    Gcr25

    Forming speed

    10-12m/ min

    Transmission type

    chain transmission and gearbox

    Machine frame stand

    guide type

    Motor

    from Shanghai,China

    Main motor power

    7.5 kw

    Cutting type

    flying saw cutting

    Cutting power

    2.2 kw

    Cutter material

    Cr12 with quenched treatment HRC 58-62

    Cutting mold

    1 set

    Cutting length error

    ±1mm

    Voltage

    380V & 50HZ & 3 or according to your requirement

    Control system

    PLC control system

    Size of PLC

    700mm*1000mm*300mm

    PLC

    Xinje (www. xinje.com)

    Out table

    4m or 6m

    Description:

    NO

    Name

    Unit

    Qty

    1

    Man-made decoiler

    set

    1

    2

    Main machine for roll forming

    set

    1

    3

    Control system

    set

    1

    4

    Hydraulic system

    set

    1
