| Place of Origin: | China |
| Brand Name: | ZHONGHENG |
| Certification: | ce/sgs |
| Model Number: | ZH1000/1100 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 22500-32000 |
| Packaging Details: | plastic film cover |
| Delivery Time: | 25 working days |
| Supply Ability: | 30 sets /month |
| Material: | PPGI | Diameter Of The Shaft: | 75mm Solid |
|---|---|---|---|
| Motor: | 5.5kw | Pump: | 4kw |
| Speed: | 10-15m/min | Chains: | Double 0.6 Inch |
| High Light: | metal roofing roll forming machine,roof panel roll forming machine |
||
R panel Roof Sheet Forming Machine with hydraulic pump and control box

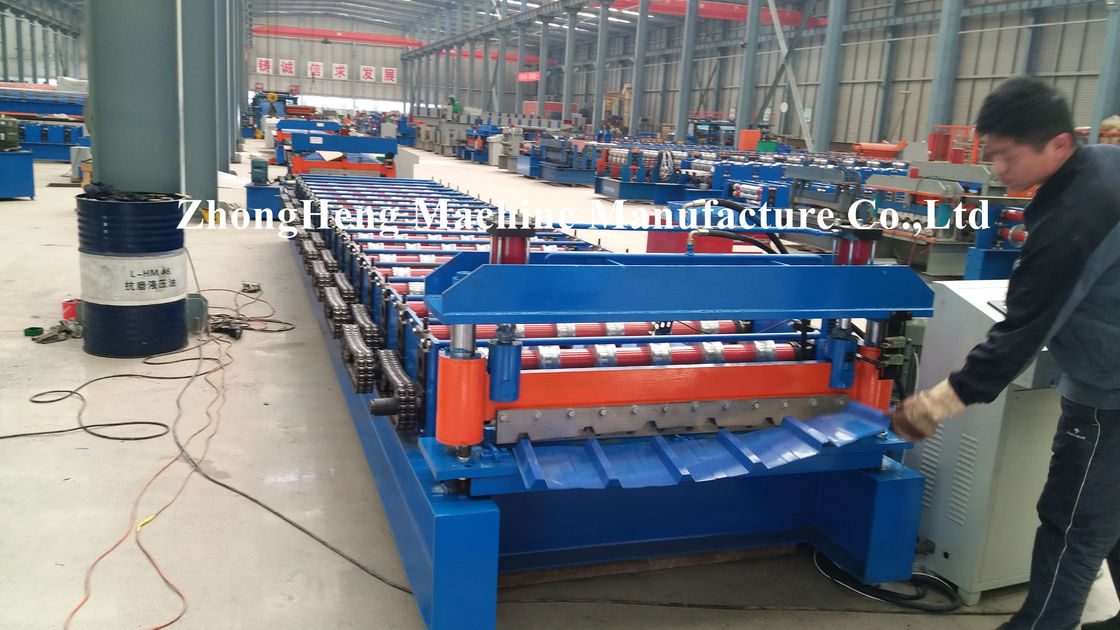

Machine pictures
Machine composition:
5Ton*1250mm Hydraulic un-coiler
Option:
Hydraulic 10Ton*1250mm with coil car
Hydraulic 5Ton*1250mm with coil car
Hydraulic 6Ton*1250mm
Hydraulic 6Ton*1500mm
Customization
Entry Bench & Manual Pre-shearing device (Un-powered)
Smart cut control, to cut off the end of the final piece of sheet only
Cold Rolling Mills
New-stand-frame design
Gear/Sprocket driving
Rollers manufactured from 40Cr, heat treatment, CNC lathes, hard Chrome Coated
Shafts Diameter=75/95mm, Precision Machined
Frequency speed control
Protection mesh cover above the roll form to avoid the hands going it;
Hydraulic Cutting Device
Stop to cut, Post cut, No Blanking cut
Hydraulic Station with Pump
Cutting tool material : Cr12, Heat treatment;
PLC Control System
Control the quantity & cutting length automatically;
Combined with: PLC, Touch Screen, Inverter (Siemens), Encoder (Omron), etc
Cut-to-length tolerance≤±1mm
Control voltage 24V
Product Rack Un-powered rack, 6 meters long
| 3. The Application |
This type of roofing has advantage inclouding beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate
4 Advantage
| 1. Professional |
15 years' rich experience! a.Specialized in roll forming machine since 1998; b.Keeping improving the quality. |
| 2. Low price |
Save your money from every part! a. Low labor cost; b. Convenient transportation; c. Complete supporting industries. |
| 3. PLC |
Ensuring high accuracy and easy to operate! Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order. |
| 4. OEM / ODM |
Customers’design, color & logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality. |
| 5. One-Years warranty, whole life service |
Keep troubles far away from you! Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems . |
5 package and loadng
A.Need one 40ft container.
B.Main body of machine fixed to container by 8mm diameter steel wire, rollers and shaft is covered
with anti-rust oil.
C.Spare parts in carton box.
