    Product Details:

    Place of Origin: China
    Brand Name: ZHONGHENG
    Certification: ce/sgs
    Model Number: ZH1000/1100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 22500-32000
    Packaging Details: plastic film cover
    Delivery Time: 25 working days
    Supply Ability: 30 sets /month
    Contact Now
    Detailed Product Description
    Material: PPGI Diameter Of The Shaft: 75mm Solid
    Motor: 5.5kw Pump: 4kw
    Speed: 10-15m/min Chains: Double 0.6 Inch

          Glazed tile / Double layer forming machine , Partial Arc Color Steel Roof tile Roll Forming Machine

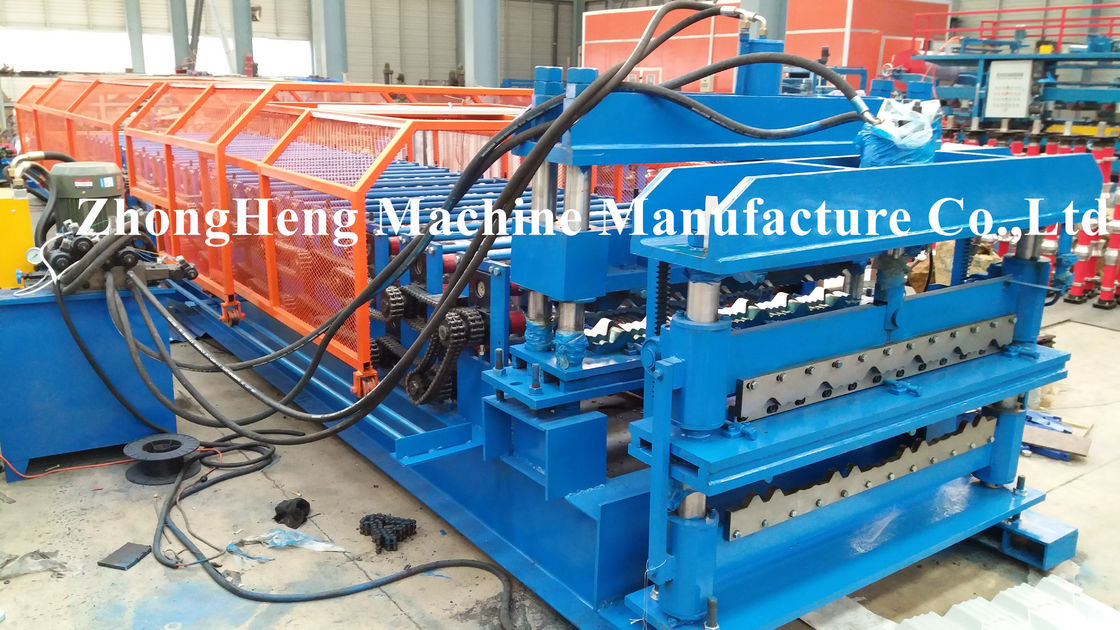

    Machine picture


    European Style Glazed Tile / Double Layer Roll Forming Machine , Partial Arc Color Steel Roof Tile Roll Forming MachineEuropean Style Glazed Tile / Double Layer Roll Forming Machine , Partial Arc Color Steel Roof Tile Roll Forming Machine

    (1). Brief Introduction

    The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.

    They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

    ancient architectures and modern villas.



    (2). Working Flow of Roll Forming Machine

    Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter





    (3).Technical Detail





    1 configurations manual decoiler,guiding platform, main machine of roll forming, tile pressing system, cutting device, output table, electro-motor, hydraulic station, plc control system
    2 processing material aluminium sheet/galvanized steel coil/color steel coil
    3 material thickness 0.3-0.8mm
    4 effective width 1100mm
    5 feeding width 1250mm
    6 main motor power 4kw
    7 pump power 4kw
    8 control system plc computer control
    9 roller material high grade No.45 forged steel, with hard chrome plating on the surface of rollers with thickness 0.05mm
    10 shaft material high grade No. 45 carbon wrought steel
    11 cutting material Cr12 mould steel with quenched treatment
    12 If you need more information, please do not hesitate to contact me,thanks
    Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
    Main Frame 350# steel. More stable and no shaking.
    Middle Plate

    16mm. We use thicker plates to ensure stability

    of our products.

    Forming Steps 11-16, according to the drawing.
    Shaft Material Φ70 mm, high grade 45# steel.

    Treating process: tempering- finish turning,

    high rigidity, hard to deform.

    Cutting

    Blade Material

    Cr12, hardness HRC60-62.
    Treating process: heat treatment- plane abrasion- wire electrode cuttin



    3. The Application



    This type of roofing  has advantage inclouding beautiful, classical appearance and grace taste.

    It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate

    4  Advantage



    1. Professional

    15 years' rich experience!

    a.Specialized in roll forming machine since 1998; b.Keeping improving the quality.

    2. Low price

    Save your money from every part!

    a. Low labor cost;

    b. Convenient transportation;

    c. Complete supporting industries.

    3. PLC

    Ensuring high accuracy and easy to operate!

    Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.

    4. OEM / ODM

    Customers’design, color & logo are also accepted!

    Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.

    5. One-Years warranty, whole life service

    Keep troubles far away from you!

    Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .

    5  package and loadng

    A.Need one 40ft container.

    B.Main body of machine fixed to container by 8mm diameter steel wire, rollers and shaft is covered

    with anti-rust oil.

    C.Spare parts in carton box.



    European Style Glazed Tile / Double Layer Roll Forming Machine , Partial Arc Color Steel Roof Tile Roll Forming Machine
